Crankshaft Front Seal: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan may cause engine failure.

Remove the A/C compressor belt. For Single Generator, Refer to: AIR CONDITIONING (A C) COMPRESSOR BELT - VEHICLES WITH: SINGLE GENERATOR or For Dual Generators, Refer to: AIR CONDITIONING (A C) COMPRESSOR BELT - VEHICLES WITH: DUAL GENERATORS
Remove the cooling module. Refer to: Cooling Module .

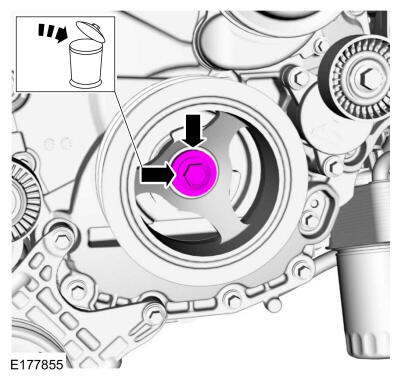

- Remove the crankshaft bolt and washer.
- Discard the bolt.
Courtesy of FORD MOTOR COMPANY

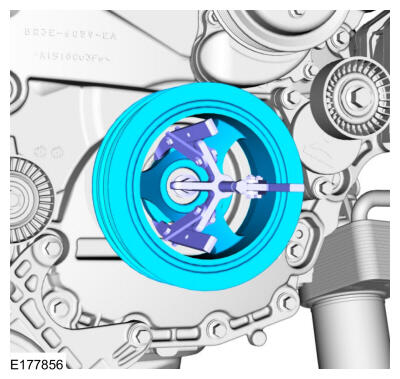

Using a three leg puller, remove the crankshaft pulley.Use the General Equipment: Three Leg Puller

Courtesy of FORD MOTOR COMPANY

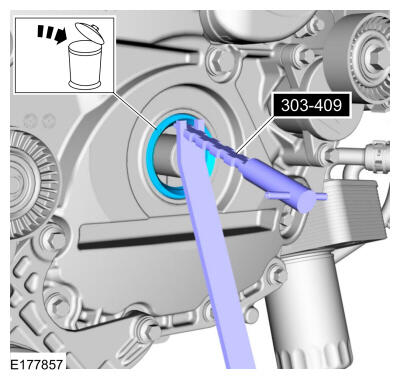

Using the special tool, remove and discard the crankshaft front seal.Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.

Courtesy of FORD MOTOR COMPANY
