Selector Lever Bezel: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fully apply the parking brake lever.
    GFD839851Courtesy of FORD MOTOR COMPANY
  2. Position aside the selector lever bezel.

    1. Lift the back of the selector lever bezel and release the tabs.
    2. Lift the front of the selector lever bezel and release the tabs.

    GFD836465Courtesy of FORD MOTOR COMPANY
  3. If equipped, disconnect the Tow/Haul switch electrical connector.
    GFD839852Courtesy of FORD MOTOR COMPANY
  4. Disconnect the SelectShift™ switch electrical connector.
    GFD839853Courtesy of FORD MOTOR COMPANY
  5. Remove the screws and the selector lever knob and bezel assembly.
    GFD839854Courtesy of FORD MOTOR COMPANY

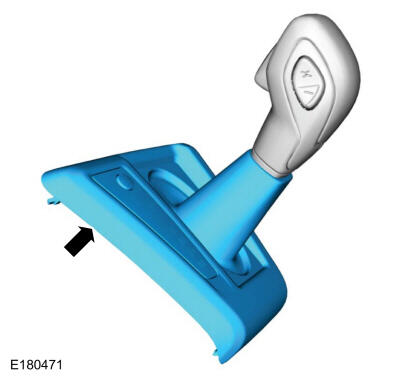

  6. Separate the selector lever bezel from the selector lever knob.
GFD839855Courtesy of FORD MOTOR COMPANY
