External Controls: Overview
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

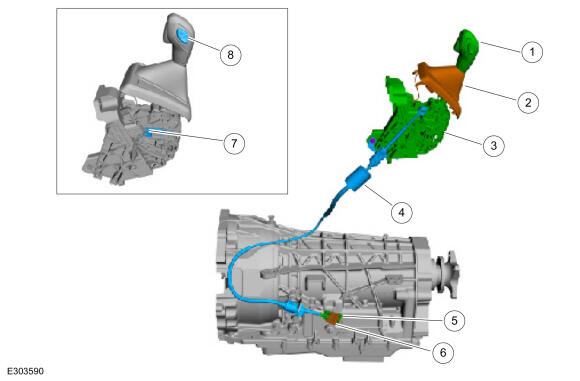

External Controls - Component Location
| Item | Description |
|---|---|
| 1 | Selector lever knob |
| 2 | Selector lever boot |
| 3 | Selector lever assembly |
| 4 | Selector lever cable |
| 5 | Selector lever adjuster |
| 6 | Selector lever cable adjuster lock |
| 7 | Brake shift interlock actuator |
| 8 | SelectShift™ switch |
External Controls - Overview
Vehicles are equipped with an instrument panel mounted selector lever.
The transmission selector lever linkage consists of:
- a selector lever cable that connects the transmission manual control lever to the selector lever assembly.
- a brake shift interlock actuator that is integral to the selector lever assembly.
- a SelectShift™ switch mounted to the selector lever that allows the driver to manually shift the transmission.
- a park detect switch that is hard wired to the body control module (BCM).
The selector lever assembly:
- locks the transmission selector lever in the P position when the ignition switch is in the LOCK position.
- requires the transmission selector lever to be in the P position to turn the ignition switch to the LOCK position.
