Variable Camshaft Timing (VCT) Oil Control Solenoid: Removal
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

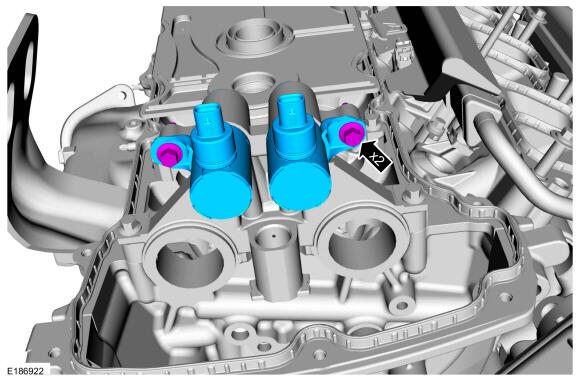

RH (right-hand) Variable Camshaft Timing (VCT) Oil Control Solenoids
- Remove the RH valve cover. Refer to: Valve Cover RH .
- Remove the bolts and the VCT oil control solenoids.
Torque: Stage 1: 8 Nm Stage 2: 20deg.

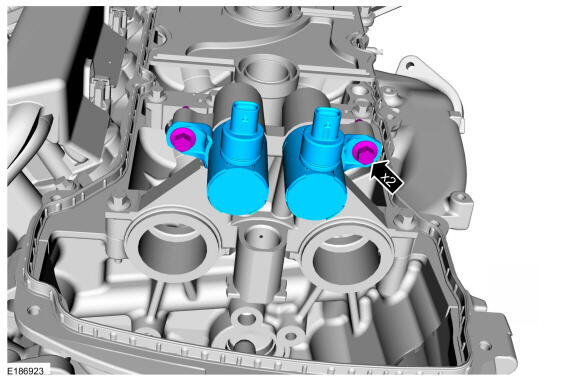

LH (left-hand) Variable Camshaft Timing (VCT) Oil Control Solenoids
- Remove the LH valve cover. Refer to: Valve Cover LH .
- Remove the bolts and the VCT oil control solenoids.
Torque: Stage 1: 8 Nm Stage 2: 20deg.
