Manifold Absolute Pressure (MAP) Sensor: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

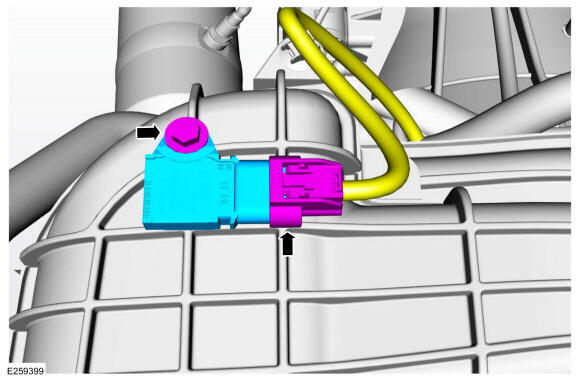

  1. Disconnect the electrical connector and remove the MAP sensor.

    Torque: 7 Nm

GFD839230Courtesy of FORD MOTOR COMPANY
