Knock Sensor (KS): Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the lower intake manifold. Refer to: Lower Intake Manifold .

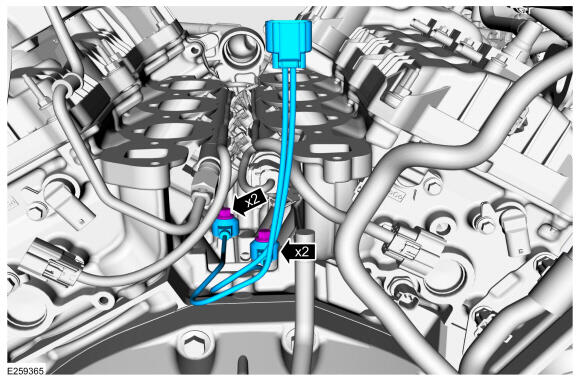

  2. Remove the bolts and the KS.

    Torque: 20 Nm

GFD839229Courtesy of FORD MOTOR COMPANY
