Fuel Rail Pressure and Temperature Sensor: Removal
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Release the fuel system pressure. Refer to: Fuel System Pressure Release .
- Disconnect the battery ground cable. Refer to: BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: SINGLE BATTERY , BATTERY DISCONNECT AND CONNECT - VEHICLES WITH: DUAL BATTERIES

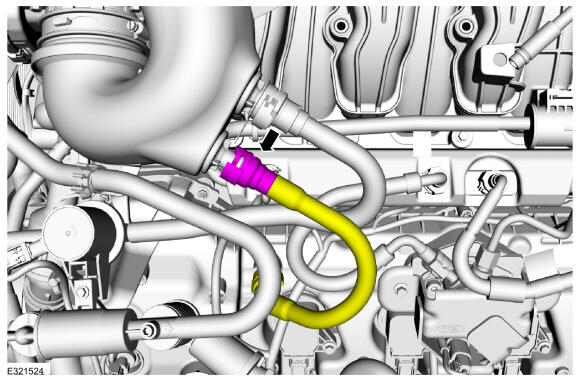

- Disconnect the vent tube and position aside. Refer to the appropriate fuel system article.

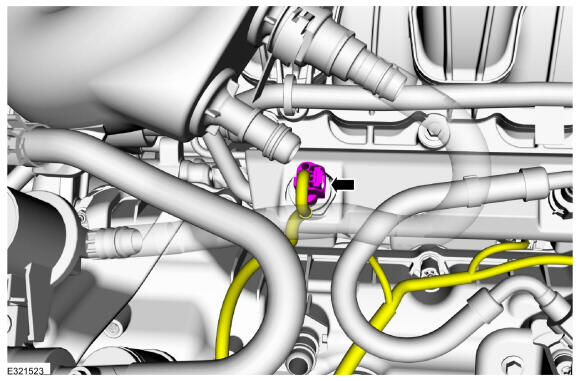

- Disconnect the electrical connector.
- Disconnect the electrical connector.

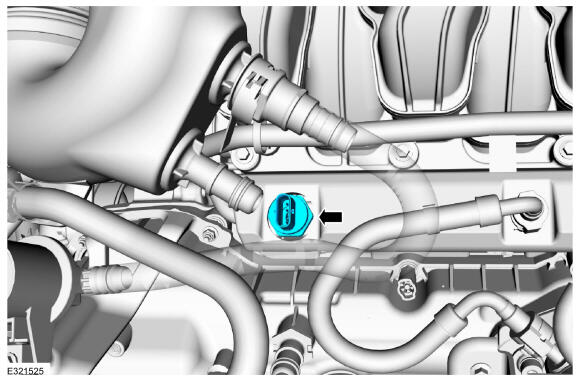

- Remove the FRP and temperature sensor.
Torque: 35 Nm
