Fuel Rail Pressure (FRP) Sensor: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the lower intake manifold. Refer to: Lower Intake Manifold .

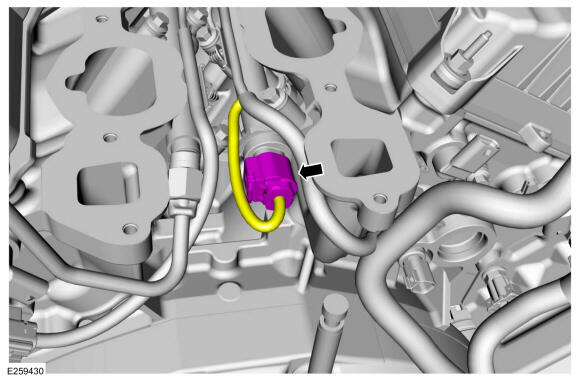

  2. Disconnect the FRP sensor.
    GFD839219Courtesy of FORD MOTOR COMPANY

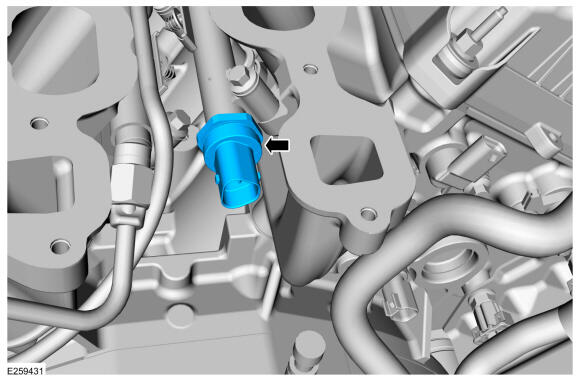

  3. Remove the FRP sensor.

    Torque: 32.5 Nm

GFD839220Courtesy of FORD MOTOR COMPANY
