Engine Oil Pressure (EOP) Sensor: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

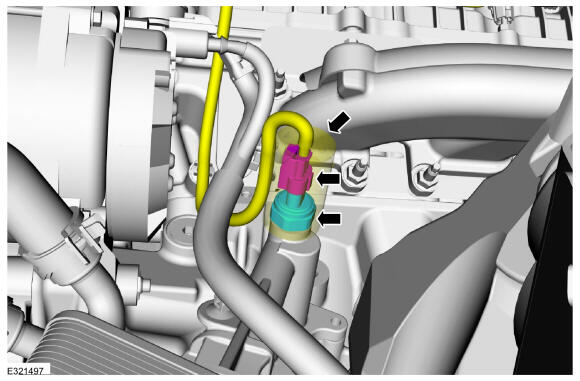

  1. Position aside the insulator and disconnect the electricla connector. Remove the oil pressure sensor.

    Torque: 18 Nm

GFD839218Courtesy of FORD MOTOR COMPANY
