Cylinder Head Temperature (CHT) Sensor: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the RH fender splash shield. Refer to: Fender Splash Shield .
  2. Remove the stud bolts and the heat shield.

    Torque: 10 Nm

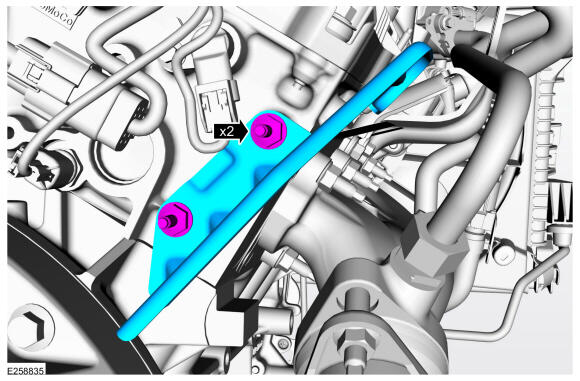

    GFD839215Courtesy of FORD MOTOR COMPANY
  3. Disconnect the CHT electrical connector.

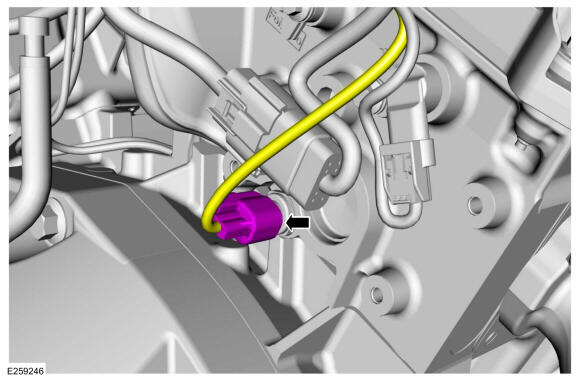

    GFD839216Courtesy of FORD MOTOR COMPANY
  4. NOTE: Do not reuse the CHT sensor, install a new sensor.

    Remove and discard the CHT sensor.

    Torque: 11 Nm

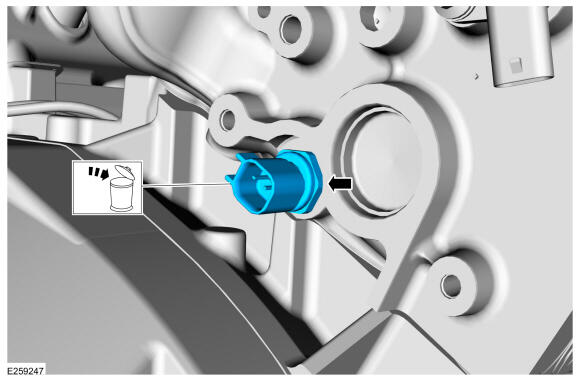

GFD839217Courtesy of FORD MOTOR COMPANY
