Crankshaft Position (CKP) Sensor: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: JACKING AND LIFTING

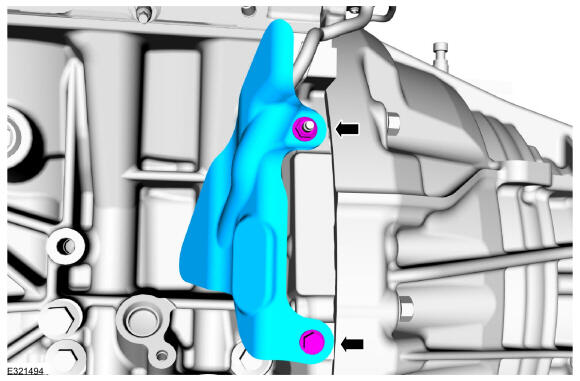

  2. Remove the nut, bolt and the heat shield.

    Torque: 10 Nm

    GFD839212Courtesy of FORD MOTOR COMPANY

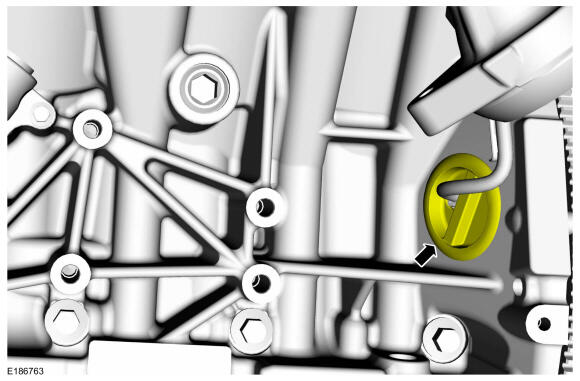

  3. Position aside the CKP sensor access plug.
    GFD839213Courtesy of FORD MOTOR COMPANY
  4. NOTE: Remove the bolt and the CKP sensor from the bell housing before disconnecting the electrical connector to prevent the CKP sensor from falling in the bell housing.

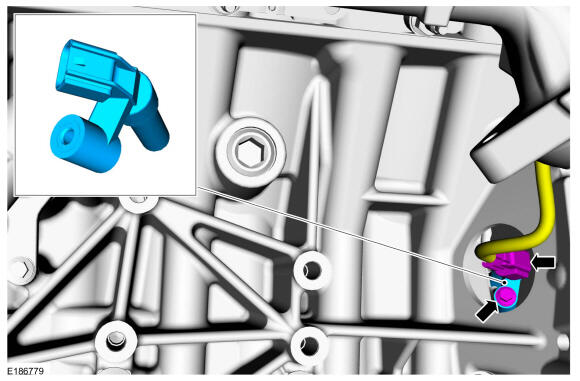

    Remove the bolt, disconnect the CKP sensor electrical connector and remove the sensor.

    Torque: 6 Nm

GFD839214Courtesy of FORD MOTOR COMPANY
