Camshaft Position (CMP) Sensor: Removal
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

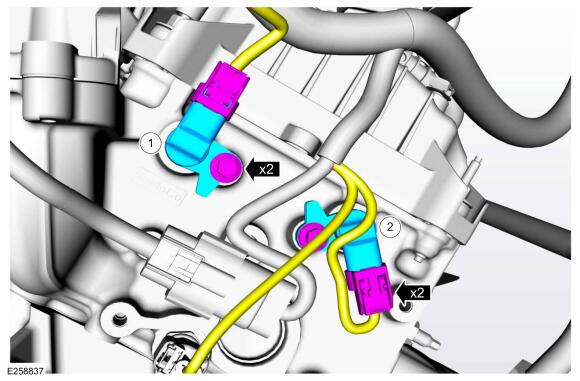

RH (right-hand) Camshaft Position (CMP) Sensors
- Remove the upper intake manifold. Refer to: Upper Intake Manifold .
-
- Disconnect the intake CMP sensor electrical connector and remove the retainer and the CMP sensor.
Torque: 10 Nm
- Disconnect the exhaust CMP sensor electrical connector and remove the retainer and the CMP sensor.
Torque: 10 Nm
LH (left-hand) Camshaft Position (CMP) Sensors
- Disconnect the intake CMP sensor electrical connector and remove the retainer and the CMP sensor.
- Remove the upper intake manifold. Refer to: Upper Intake Manifold .
-
- Disconnect the exhaust CMP sensor electrical connector and remove the retainer and the CMP sensor.
Torque: 10 Nm

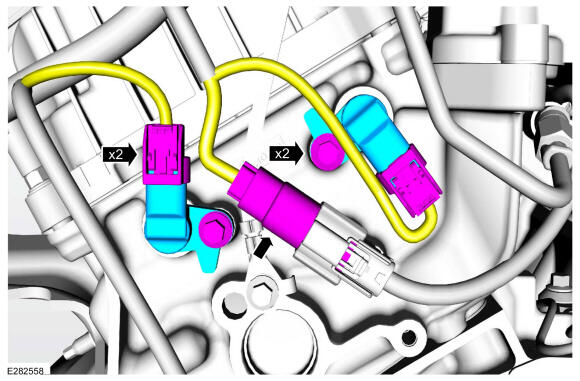

- Disconnect the fuel rail electrical connector and position aside. Disconnect the intake CMP sensor electrical connector and remove the retainer and the CMP sensor.
Torque: 10 Nm
- Disconnect the exhaust CMP sensor electrical connector and remove the retainer and the CMP sensor.
