Electronic Engine Controls - Component Location
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

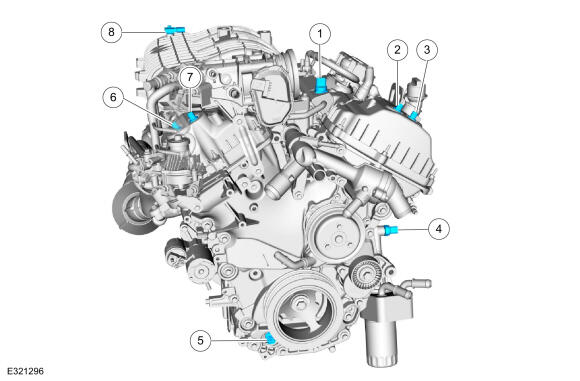

Electronic Engine Controls- Front
| Item | Description |
|---|---|
| 1 | FRP and Temperature sensor. |
| 2 | LH intake VCT oil control solenoid |
| 3 | LH exhaust VCT oil control solenoid |
| 4 | EOP sensor |
| 5 | Oil Pressure Control Solenoid |
| 6 | RH exhaust VCT oil control solenoid |
| 7 | RH intake VCT oil control solenoid |
| 8 | MAP sensor |

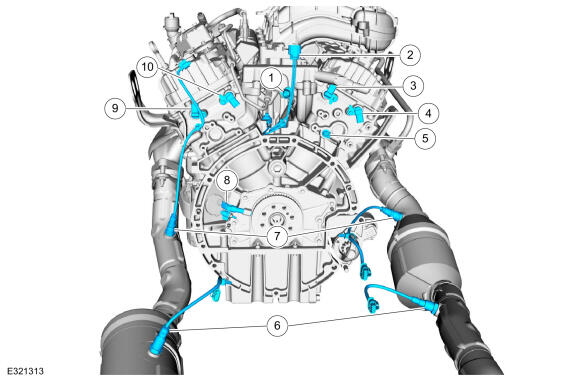

Electronic Engine Controls - Rear
| Item | Description |
|---|---|
| 1 | FRP sensor |
| 2 | KS |
| 3 | Right hand CMP intake sensor |
| 4 | Right hand CMP exhaust sensor |
| 5 | CHT sensor |
| 6 | Catalyst monitor sensors |
| 7 | HO2S |
| 8 | CKP sensor |
| 9 | Left hand CMP exhaust sensor |
| 10 | Left hand CMP intake sensor |
Powertrain Control Module (PCM)
| Item | Description |
|---|---|
| 1 | PCM |
