Turbocharger Bypass Valve: Removal
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. efer to: Jacking and Lifting (100-02).
-

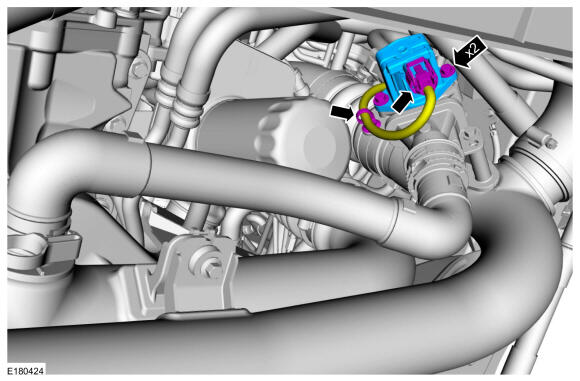

- Disconnect the Turbo bypass valve electrical connector and release the wiring retainer to position aside the harness.
- Remove the 2 bolts and the Turbo bypass valve.
Torque: 7 Nm
