Turbocharger Boost Pressure (TCBP) and Charger Air Cooler Temperature (CACT) Sensor: Removal
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE:
Removal steps in this procedure may contain installation details.

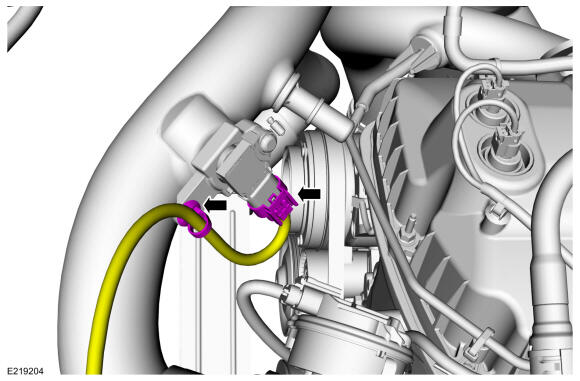

Disconnect the Turbocharger Boost Pressure and Charge Air Temperature Sensor electrical connector.
 Courtesy of FORD MOTOR COMPANY
|

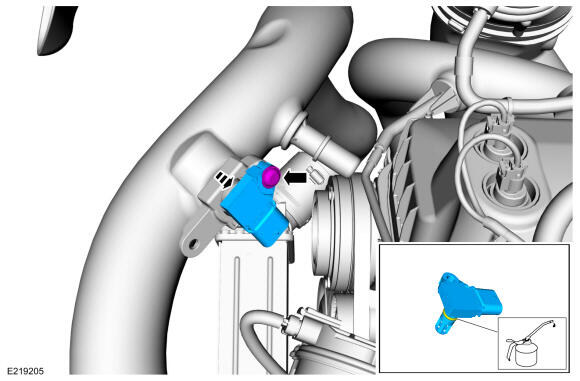

- Remove the screw and the Turbocharger Boost Pressure and Charge Air Temperature Sensor.
Torque: 3 Nm
 Courtesy of FORD MOTOR COMPANY
|
