Powertrain Control Module (PCM): Removal
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: This step is only necessary when installing a new component.
Download the module information to the diagnostic tool using the Programmable Modules Installation routine. efer to: Module Configuration (418-01 Module Configuration - 3.5L EcoBoost (235kW/320PS)).

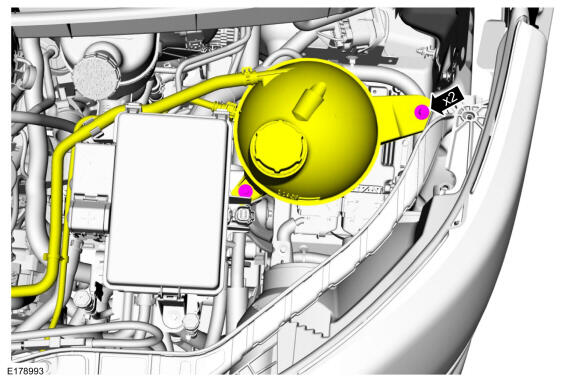

- Remove the retainers and position aside the degas bottle.
Torque: 8 Nm

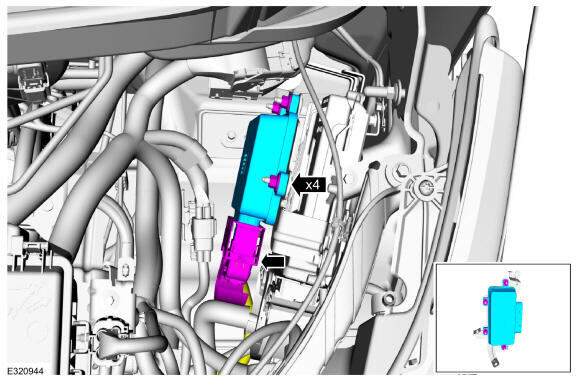

- Disconnect the electrical connector. Remove the retainers and the module.
Torque: 5 Nm
-

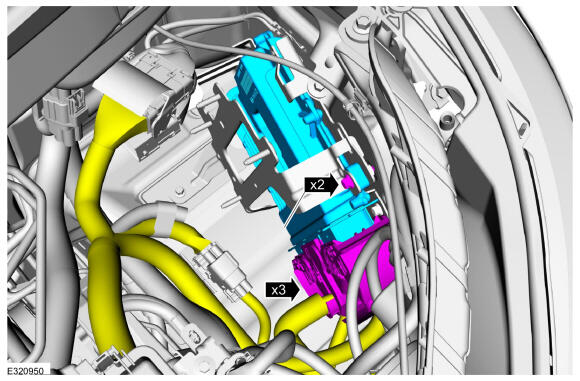

- Disconnect the PCM electrical connectors.
- Remove the mounting bolts and the PCM.
Torque: 11 Nm
