Manifold Absolute Pressure and Temperature (MAPT) Sensor: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

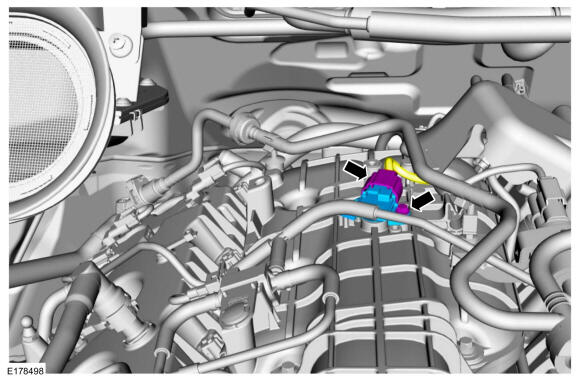

    • Disconnect the MAPT electrical connector.

    • Remove the bolt and the MAPT sensor.

GFD839192Courtesy of FORD MOTOR COMPANY
