Manifold Absolute Pressure and Temperature (MAPT) Sensor: Installation

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

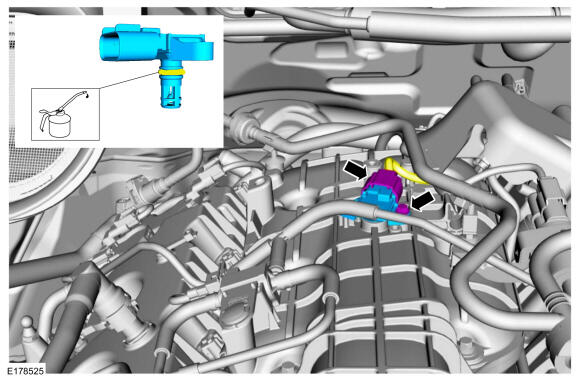

  1. NOTE: Lubricate the O-ring seal with clean engine oil.

    • Install the MAPT sensor and the bolt.

      Torque: 3 Nm

    • Connect the MAPT electrical connector.

GFD839193Courtesy of FORD MOTOR COMPANY
