Knock Sensor (KS): Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the fuel rail. efer to: Fuel Rail .

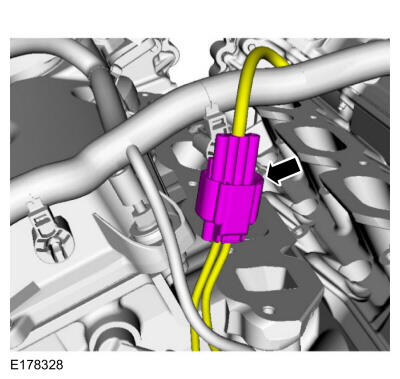

  2. Disconnect the KS electrical connector.
    GFD839190Courtesy of FORD MOTOR COMPANY

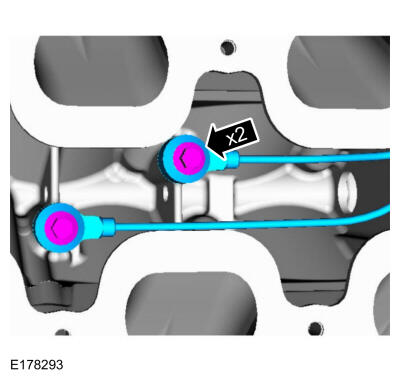

  3. Remove the bolts and the KS.

    Torque: 20 Nm

GFD839191Courtesy of FORD MOTOR COMPANY
