Intake Air Temperature (IAT) Sensor: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: Removal steps in this procedure may contain installation details.

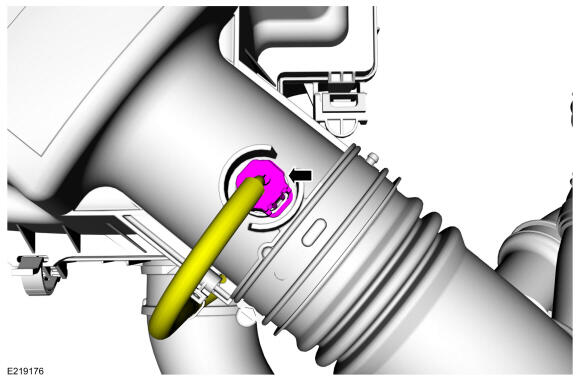

    Disconnect the IAT sensor electrical connector.

    GFD839188Courtesy of FORD MOTOR COMPANY
  2. Remove the IAT sensor.
GFD839189Courtesy of FORD MOTOR COMPANY
