Heated Oxygen Sensor (HO2S): Removal
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
All sensors
- With the vehicle in NEUTRAL, position it on a hoist. efer to: Jacking and Lifting (100-02 Jacking and Lifting).

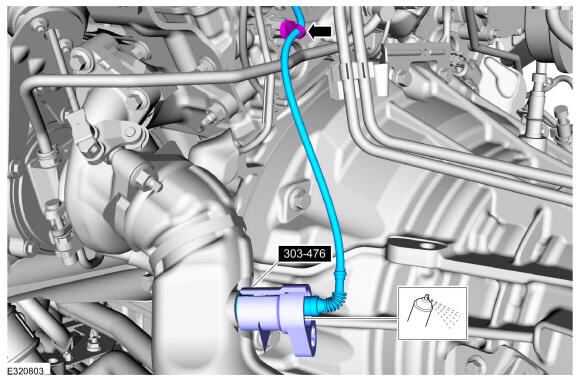

Right Hand Heated Oxygen (HO2S) Sensor
-
- Disconnect the electrical connector and remove the harness retainers.
- Apply penetrating oil to sensor, using the special tool remove the HO2S.Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.
Material: Penetrating Fluid

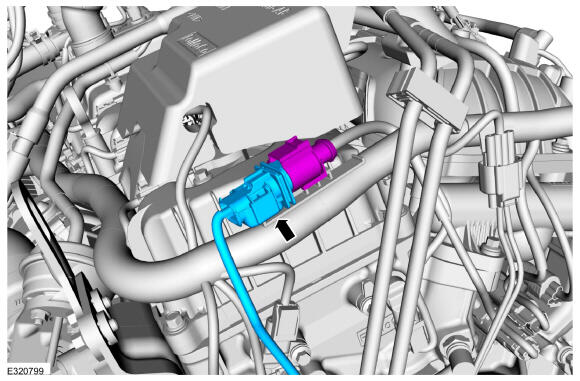

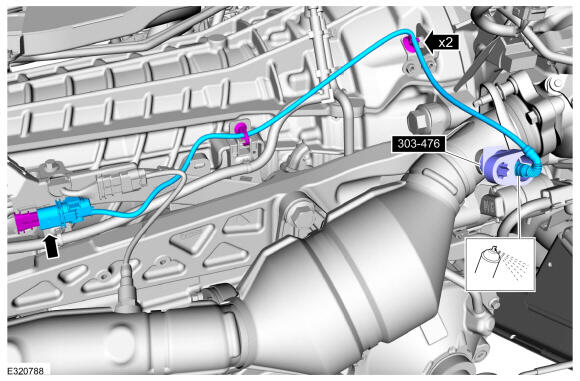

Left Hand Heated Oxygen (HO2S) Sensor
- Disconnect the electrical connector.
- Remove the harness pushpin. Apply penetrating oil to sensor, using the special tool remove the HO2S.Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.
Material: Penetrating Fluid
