Heated Oxygen Sensor (HO2S): Installation
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

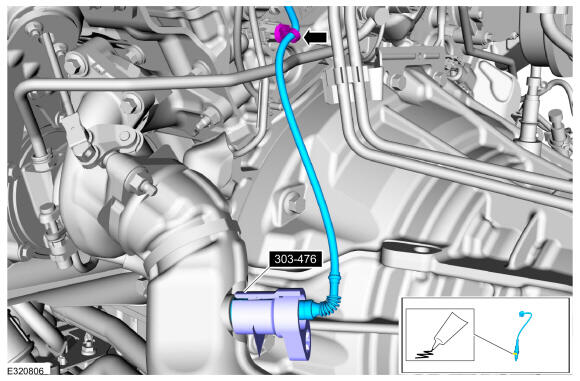

Left Hand Heated Oxygen (HO2S) Sensor
-
- Apply anti-seize to thread of sensor, Using special tool install the HO2S.Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.
Material: Anti-Seize Lubricant
Torque: 48 Nm
- Install the harness retainer.

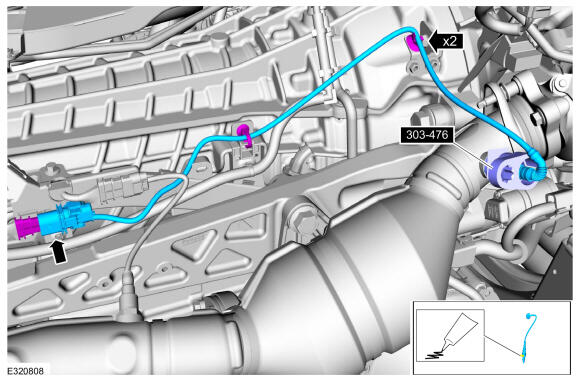

Right Hand Heated Oxygen (HO2S) Sensor
- Apply anti-seize to thread of sensor, Using special tool install the HO2S.Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.
-
- Apply anti-seize to thread of sensor, Using special tool install the HO2S.Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.
Material: Anti-Seize Lubricant
Torque: 48 Nm
- Install the harness retainers and connect the electrical connector.
All sensors
- Apply anti-seize to thread of sensor, Using special tool install the HO2S.Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.
- To install, reverse the removal procedure.
