Fuel Rail Pressure (FRP) Sensor: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the fuel system pressure. efer to: Fuel System Pressure Release .
  2. Disconnect the battery ground cable. efer to: Battery Disconnect and Connect - Vehicles With: Single Battery (414-01). efer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries (414-01).
  3. Remove the intake manifold. efer to: Intake Manifold .

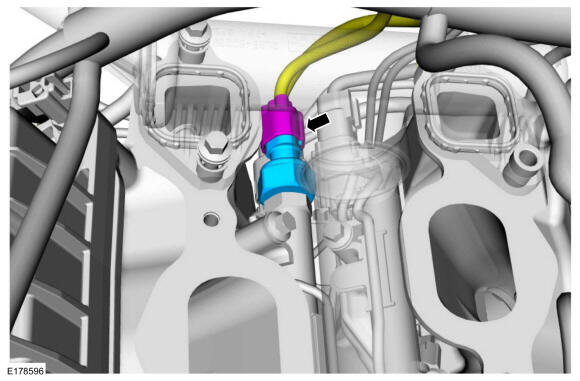

    • Disconnect the FRP sensor electrical connector.

    • Remove the FRP sensor.

GFD839181Courtesy of FORD MOTOR COMPANY
