Fuel Rail Pressure (FRP) Sensor: Installation

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

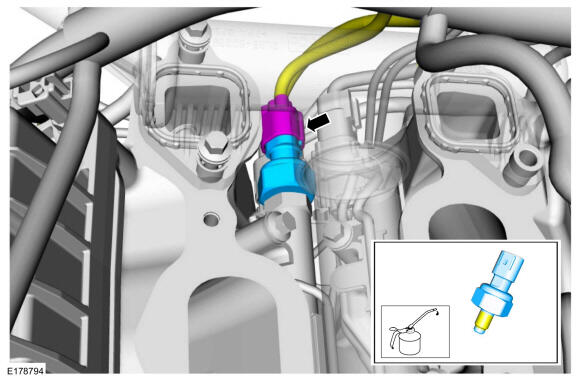

  1. NOTE: Lubricate the thread area of the new FRP sensor with clean engine oil prior to installation.

    • Install the FRP sensor.

      Torque: 33 Nm

    • Connect the FRP sensor electrical connector.

    GFD839182Courtesy of FORD MOTOR COMPANY
  2. Install the intake manifold. efer to: Intake Manifold .
  3. Connect the battery ground cable. efer to: Battery Disconnect and Connect - Vehicles With: Single Battery (414-01). efer to: Battery Disconnect and Connect - Vehicles With: Dual Batteries (414-01).
