Cylinder Head Temperature (CHT) Sensor: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

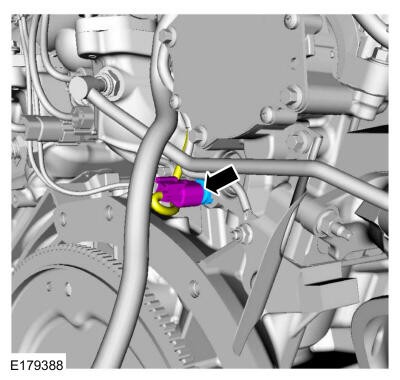

  1. Disconnect the CHT sensor electrical connector.
    GFD839179Courtesy of FORD MOTOR COMPANY

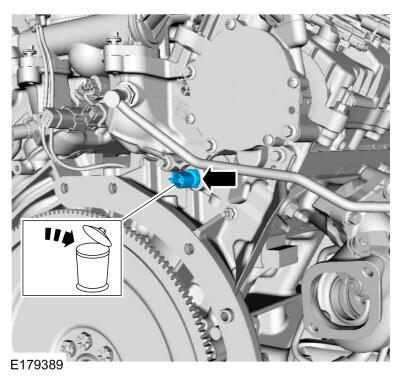

  2. Remove the CHT sensor.

    Torque: 10 Nm

GFD839180Courtesy of FORD MOTOR COMPANY
