Crankshaft Position (CKP) Sensor: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the LH turbocharger. efer to: Turbocharger LH .
  2. Remove the retainers and heat shield.
    GFD839175Courtesy of FORD MOTOR COMPANY
  3. Position aside the CKP sensor access plug.
    GFD839176Courtesy of FORD MOTOR COMPANY
  4. NOTE: Remove the bolt and the CKP sensor from the bell housing before disconnecting the electrical connector to prevent the CKP sensor from falling in the bell housing.

    • Remove the CKP sensor bolt.

    • Remove the CKP sensor then disconnect the electrical connector.

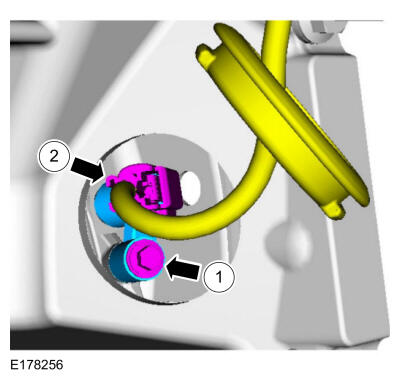

GFD839177Courtesy of FORD MOTOR COMPANY
