Crankshaft Position (CKP) Sensor: Installation

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

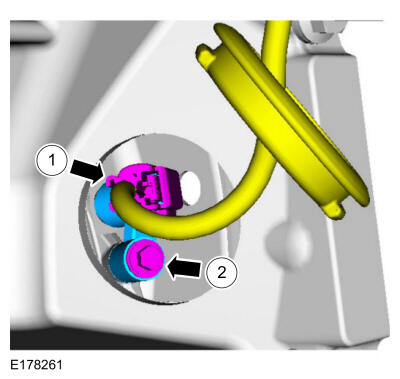

    • Connect the electrical connector then install the CKP sensor.

    • Install the bolt.

      Torque: 10 Nm

    GFD839178Courtesy of FORD MOTOR COMPANY

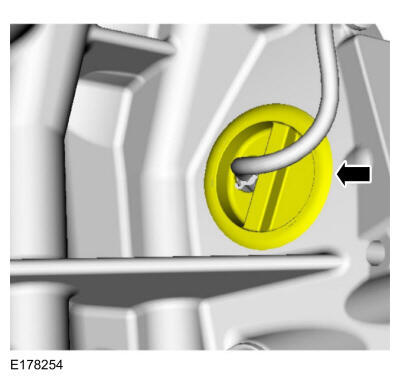

  2. Position back the CKP sensor access plug.
    GFD839176Courtesy of FORD MOTOR COMPANY

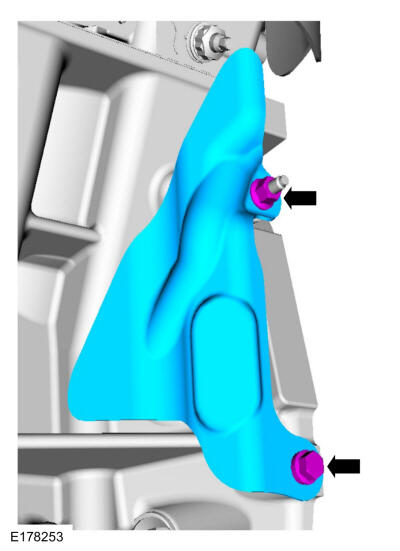

  3. Install the heat shield and retainers.

    Torque: 10 Nm

    GFD839175Courtesy of FORD MOTOR COMPANY
  4. Install the LH turbocharger. efer to: Turbocharger LH .
  5. Using the scan tool, perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.
