Camshaft Position (CMP) Sensor: Installation

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

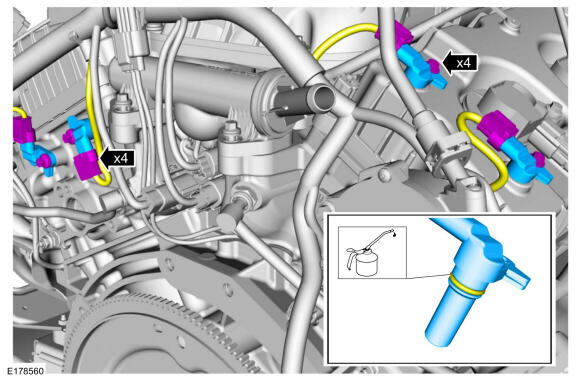

  1. NOTE: Lubricate the O-ring seal with clean engine oil.

    • Install the CMP sensors and the bolts.

      Torque: 10 Nm

    • Connect the CMP connectors.

GFD839169Courtesy of FORD MOTOR COMPANY
