Removal And Installation: Tailpipe: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The configuration of the exhaust system varies depending on wheelbase and frame length. Typical application shown.

Position vehicle on a hoist. Refer to: JACKING AND LIFTING

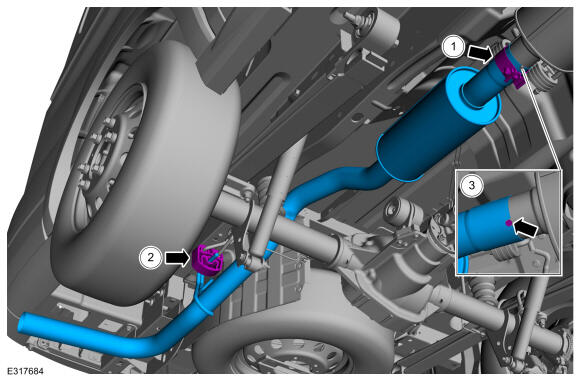

1. Loosen the clamp.
  Torque: 48 Nm
2. Detach the exhaust isolator.
3. NOTE: Note the muffler-to-tailpipe alignment tab for installation.

  Remove the tailpipe from the vehicle.
Courtesy of FORD MOTOR COMPANY

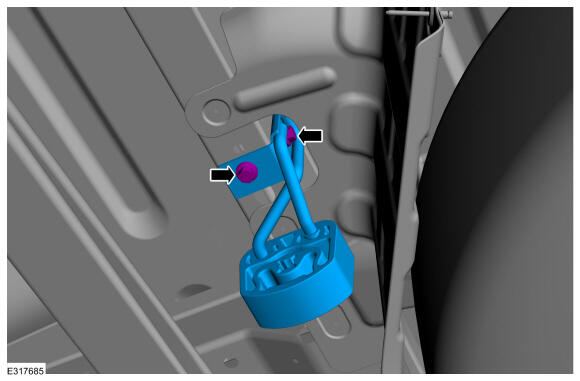

NOTE: This step is only required if you are replacing the isolator bracket.

Remove the bolts and isolator bracket.

Torque: 25 Nm

Courtesy of FORD MOTOR COMPANY
