Removal And Installation: Muffler: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Position vehicle on a hoist. Refer to: JACKING AND LIFTING
Remove the tailpipe. Refer to: Tailpipe .

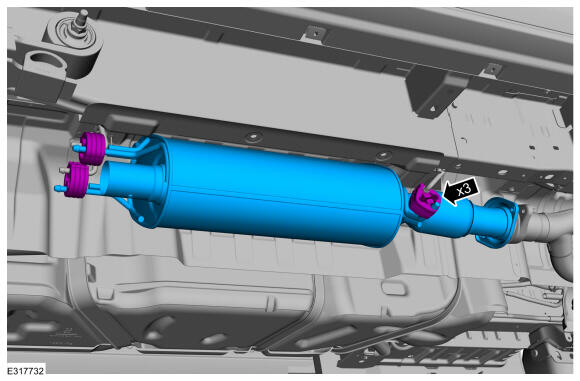

Remove the bolts.
Torque: 40 Nm

Courtesy of FORD MOTOR COMPANY
Detach the exhaust isolators and remove the muffler assembly.

Courtesy of FORD MOTOR COMPANY

Isolator hanger bracket

NOTE: The below step is only necessary, if you are replacing the isolator hanger bracket.

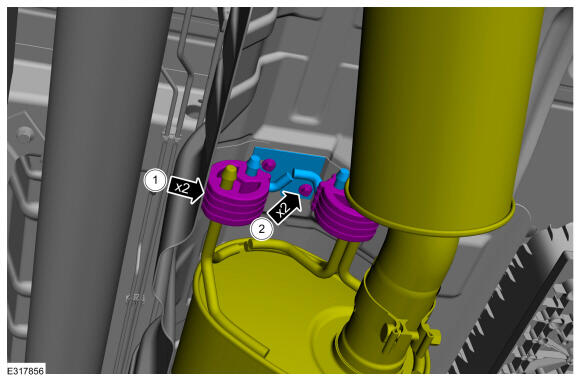

1. Detach the isolator.
2. Remove the bolts and the isolator hanger bracket.
  Torque: 30 Nm
Courtesy of FORD MOTOR COMPANY

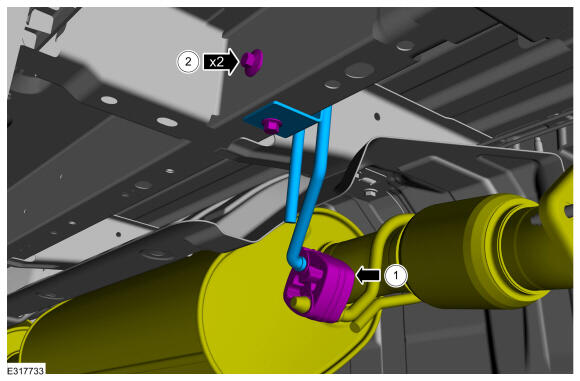

1. Detach the isolators.
2. Remove the bolts and the isolator hanger bracket.
  Torque: 20 Nm

Courtesy of FORD MOTOR COMPANY
