Exhaust System - Component Location
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
RWD

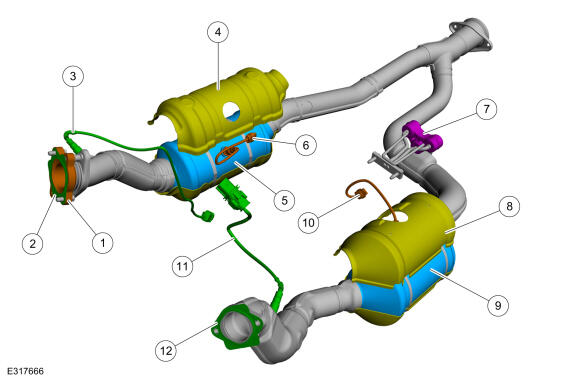

| Item | Description |
|---|---|
| 1 | Exhaust hot end adapter |
| 2 | RH gasket |
| 3 | Exhaust gas oxygen sensor - upstream |
| 4 | RH catalytic converter heat shield |
| 5 | RH catalytic converter |
| 6 | Exhaust gas oxygen sensor - downstream |
| 7 | Isolator |
| 8 | LH catalytic converter heat shield |
| 9 | LH catalytic converter |
| 10 | Exhaust gas oxygen sensor - downstream |
| 11 | Exhaust gas oxygen sensor - upstream |
| 12 | LH gasket |
AWD

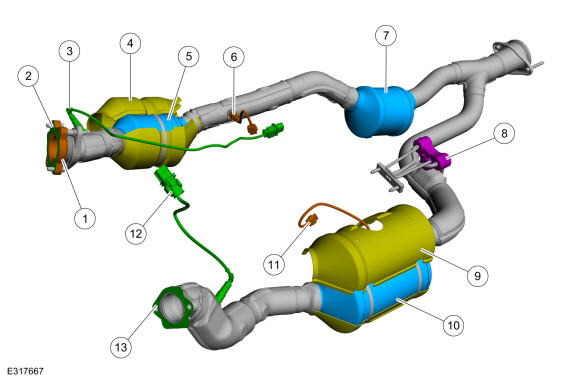

| Item | Description |
|---|---|
| 1 | Exhaust hot end adapter |
| 2 | RH gasket |
| 3 | Exhaust gas oxygen sensor - upstream |
| 4 | RH catalytic converter heat shield |
| 5 | RH catalytic converter |
| 6 | Exhaust gas oxygen sensor - downstream |
| 7 | Converter sub-assembly |
| 8 | Isolator |
| 9 | LH catalytic converter heat shield |
| 10 | LH catalytic converter |
| 11 | Exhaust gas oxygen sensor - downstream |
| 12 | Exhaust gas oxygen sensor - upstream |
| 13 | LH gasket |

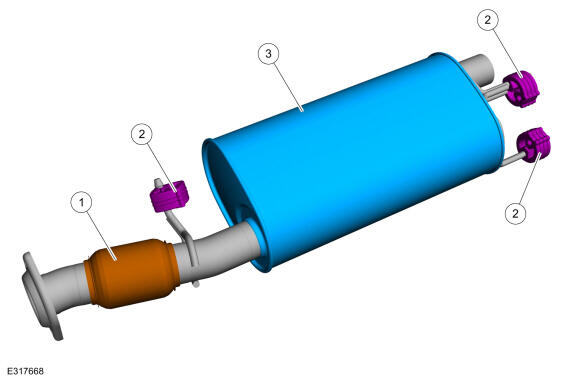

| Item | Description |
|---|---|
| 1 | Exhaust flexible pipe |
| 2 | Isolators |
| 3 | Muffler |

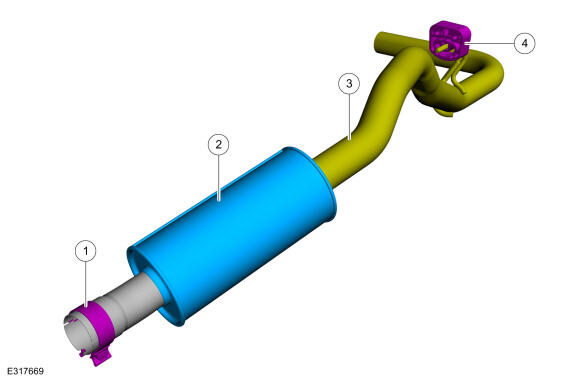

| Item | Description |
|---|---|
| 1 | Clamp |
| 2 | Resonator |
| 3 | Tailpipe |
| 4 | Isolator |
