Front Halfshaft RH: Installation
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: Install a new component if it is damaged or has excessive wear.

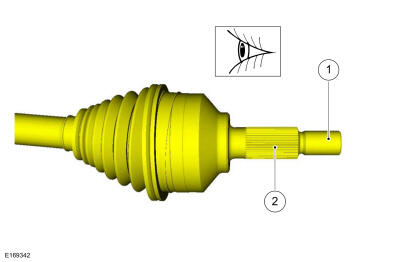

Clean and inspect the outer CV joint.
-
NOTE: Install a new component if it is damaged or has excessive wear.

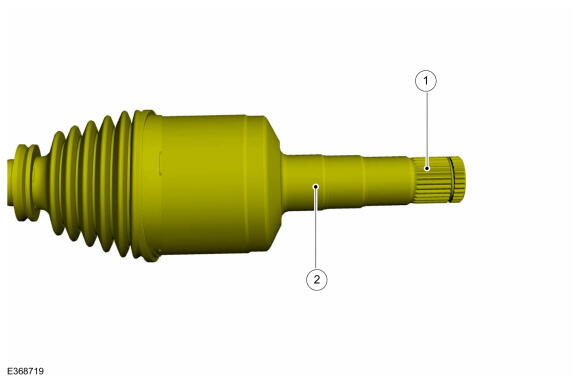

Clean and inspect the inner CV joint.
-
NOTE: The inner constant velocity (CV) joint must not be bent more than 18deg..NOTE: Take extra care not to damage the seal.

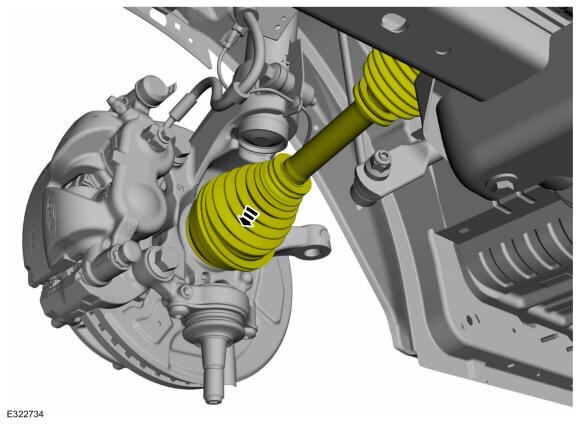

Install the inner CV joint end.
- Rotate the steering wheel fully to the RH side.
-
NOTE: Make sure that the strut is not moved more than necessary to prevent damage to top mount.NOTE: The outer constant velocity (CV) joint must not be bent more than 45deg..

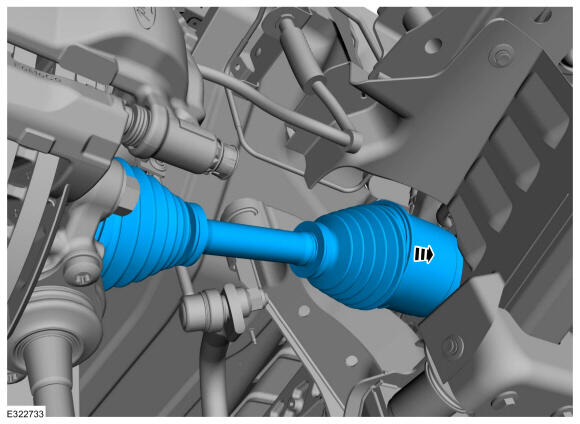

Install the outer CV joint end into wheel hub and bearing assembly.
-
NOTE: Make sure that the strut is not moved more than necessary to prevent damage to top mount.NOTE: The outer constant velocity (CV) joint must not be bent more than 45deg..

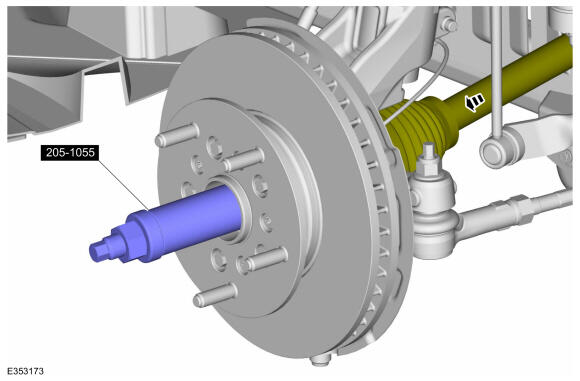

Using special tool, pull the halfshaft into the wheel hub assembly.Install Suggested Tool: 205-1055 Installer, Companion Flange. Tool shown or a commercially available equivalent can be used.
-
NOTE: Only tighten the nut finger tight at this stage.

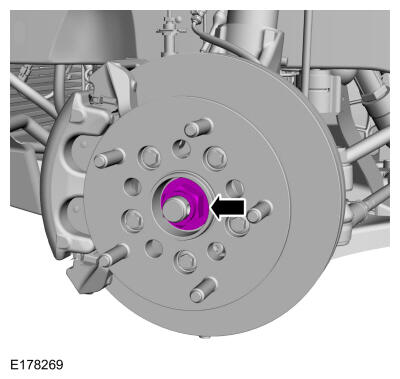

Install the new wheel hub nut.
-
NOTE: Make sure that the component is correctly installed.

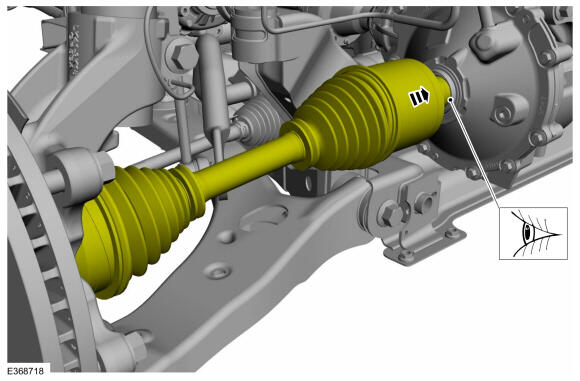

Check the inner CV joint seated correctly.
-
NOTE: Use the hex-holding feature to prevent the lower ball joint stud from turning while installing the lower ball joint nut.
Connect the lower control arm and install the new lower ball joint nut.
Torque
: 215 Nm

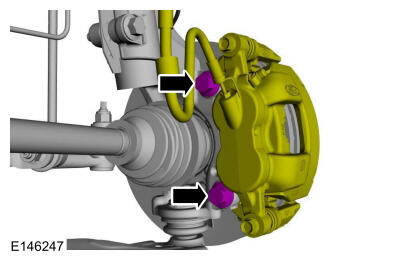

- Position the brake caliper and anchor plate assembly and tighten the new brake caliper anchor plate bolts.
Torque
: 275 Nm
All vehicles

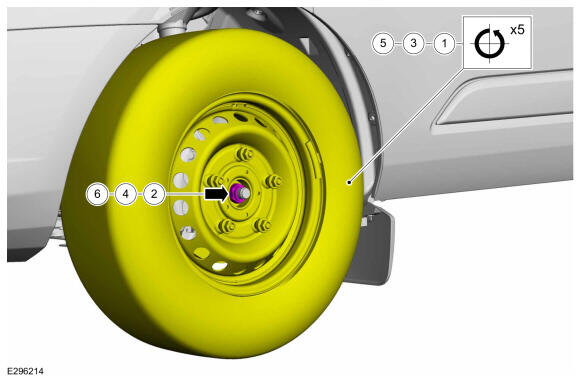

- Refer to: Wheel and Tire .
- While an assistant applies the brake, tighten the wheel hub nut.
- Torque
: 100 Nm
- Torque
: 250 Nm
- Torque
: 515 Nm
- Install the wheel center cap.
