Front Halfshaft LH: Installation

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

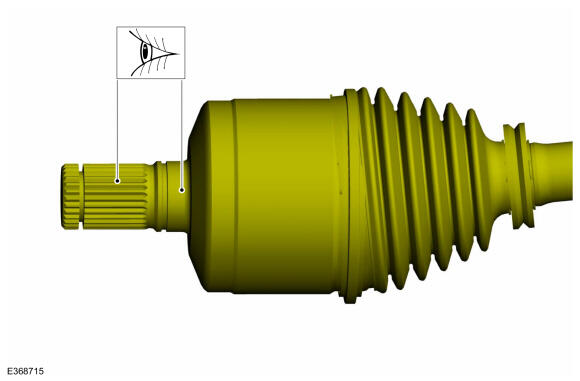

  1. NOTE: Install a new component if it is damaged or has excessive wear.

    Clean and inspect the inner CV joint.

    GFD836945Courtesy of FORD MOTOR COMPANY
  2. NOTE: Install a new component if it is damaged or has excessive wear.

    Clean and inspect the outer CV joint.

    GFD836946Courtesy of FORD MOTOR COMPANY

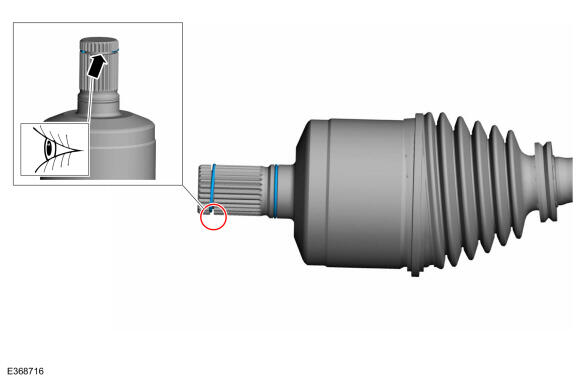

  3. NOTE: Make sure that a new component is installed.

    Install the new snap ring and oil seal, make sure the snap ring opening is at 6 'O clock position.

    GFD836947Courtesy of FORD MOTOR COMPANY

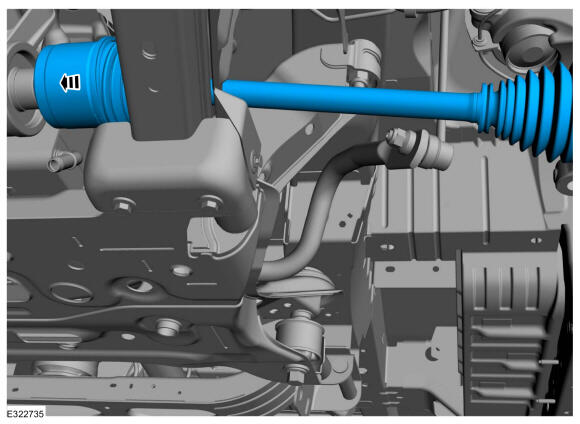

  4. NOTE: The inner constant velocity (CV) joint must not be bent more than 18deg..
    NOTE: Take extra care not to damage the seal.

    Install the inner CV joint end.

    GFD836948Courtesy of FORD MOTOR COMPANY
  5. Rotate the steering wheel fully to the LH side.
    GFD836548Courtesy of FORD MOTOR COMPANY

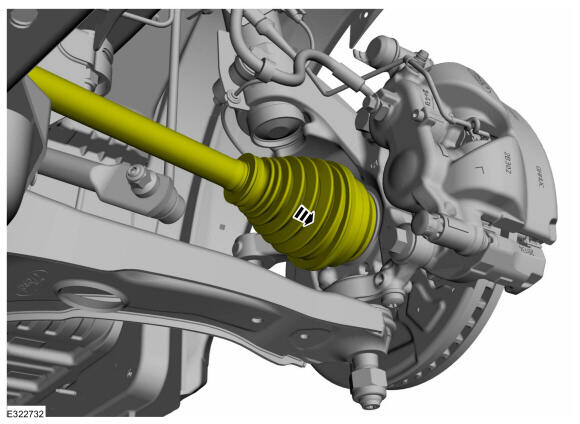

  6. NOTE: Make sure that the strut is not moved more than necessary to prevent damage to top mount.
    NOTE: The outer constant velocity (CV) joint must not be bent more than 45deg..

    Install the outer CV joint end into wheel hub and bearing assembly.

    GFD836949Courtesy of FORD MOTOR COMPANY
  7. NOTE: Make sure that the strut is not moved more than necessary to prevent damage to top mount.
    NOTE: The outer constant velocity (CV) joint must not be bent more than 45deg..

    Using special tool, pull the halfshaft into the wheel hub assembly.Install Suggested Tool: 205-1055 Installer, Companion Flange. Tool shown or a commercially available equivalent can be used.

    GFD836565Courtesy of FORD MOTOR COMPANY
  8. NOTE: Only tighten the nut finger tight at this stage.

    Install the new wheel hub nut.

    GFD836566Courtesy of FORD MOTOR COMPANY

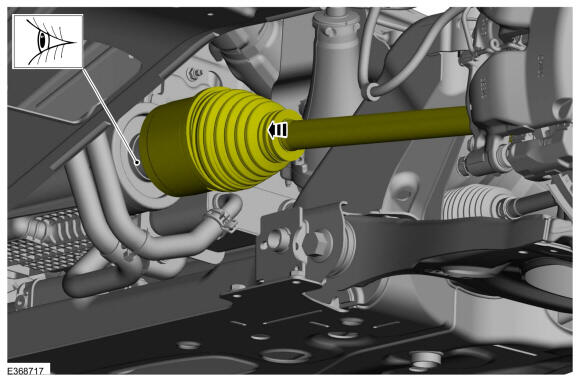

  9. NOTE: Make sure that the component is correctly installed.

    Check the inner CV joint seated correctly.

    GFD836950Courtesy of FORD MOTOR COMPANY
  10. NOTE: Use the hex-holding feature to prevent the lower ball joint stud from turning while installing the lower ball joint nut.

    Connect the lower control arm and install the new lower ball joint nut.

    Torque

    : 215 Nm

    GFD836505Courtesy of FORD MOTOR COMPANY
  11. Position the brake caliper and anchor plate assembly and tighten the new brake caliper anchor plate bolts.

    Torque

    : 275 Nm

    GFD836567Courtesy of FORD MOTOR COMPANY

    All vehicles

  12. Refer to: Wheel and Tire .
  13. While an assistant applies the brake, tighten the wheel hub nut.
  14. Torque

    : 100 Nm

  15. Torque

    : 250 Nm

  16. Torque

    : 515 Nm

GFD836951Courtesy of FORD MOTOR COMPANY
GFD836544Courtesy of FORD MOTOR COMPANY
