Drive Pinion Flange and Seal: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front driveshaft. Refer to: Front Driveshaft - LHD AWD .
  2. NOTE: Rotational torque of the drive pinion flange must be measured and recorded using a Nm (lb-in) torque wrench for correct pinion bearing preload when reassembled. This will be the torque-to-turn measurement.

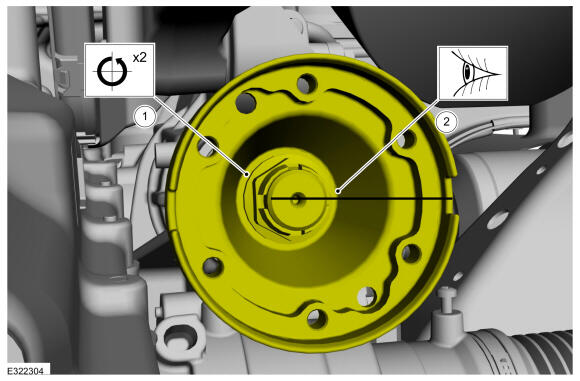

    1. Using dial type torque wrench, measure and record the rotational torque of the drive pinion.
    2. Index mark the pinion flange and the drive pinion stem.

    GFD836930Courtesy of FORD MOTOR COMPANY

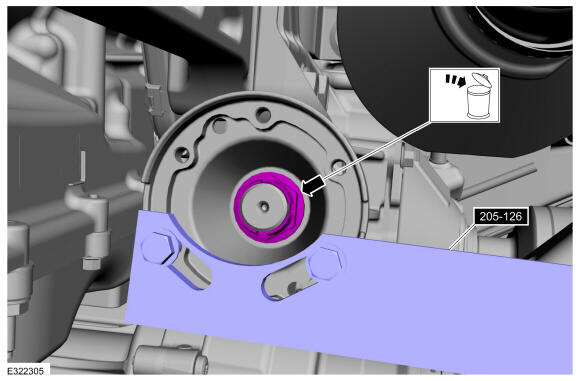

  3. Using the special tool, remove and discard the front axle drive pinion stem nut.Use Special Service Tool: 205-126 (T78P-4851-A) Holding Fixture, Drive Pinion Flange.
    GFD836931Courtesy of FORD MOTOR COMPANY

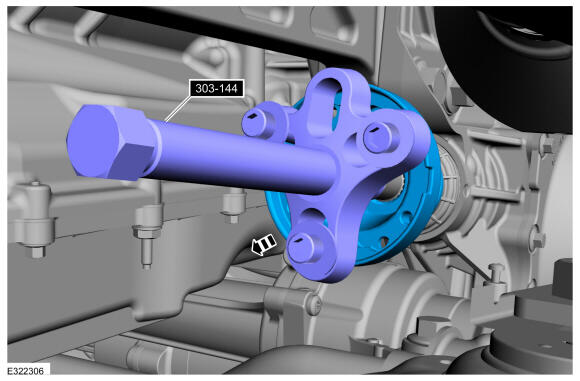

  4. Using the special tool, remove the front axle drive pinion flange.Use Special Service Tool: 303-144 (T79T-6316-A) Remover, Crankshaft Harmonic Balancer.
    GFD836932Courtesy of FORD MOTOR COMPANY

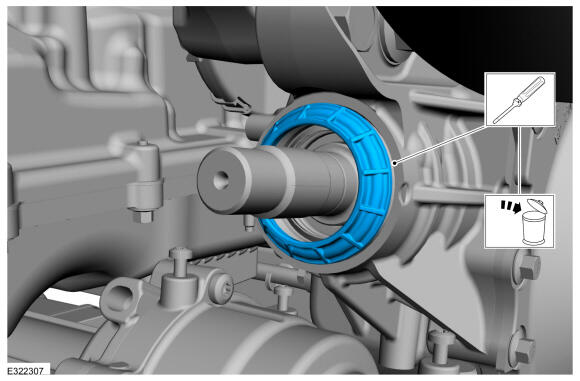

  5. Using a general equipment, remove and discard the front drive pinion seal dust cover.Use the General Equipment: Flat Headed Screw Driver
    GFD836933Courtesy of FORD MOTOR COMPANY

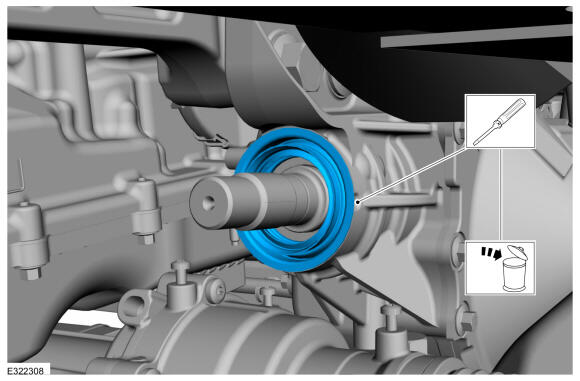

  6. Using a general equipment, remove and discard the front drive pinion seal.Use the General Equipment: Flat Headed Screw Driver
GFD836934Courtesy of FORD MOTOR COMPANY
