Differential Breather Tube: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the front RH wheel only. Refer to: Wheel and Tire - Vehicles With: Dual Rear Wheels .

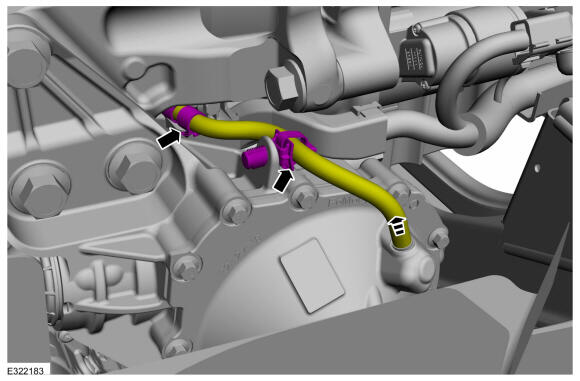

- Detach the front axle assembly breather hose retainer.
- Detach the front axle assembly breather hose tie strap.
- Disconnect the front axle assembly breather hose
Courtesy of FORD MOTOR COMPANY

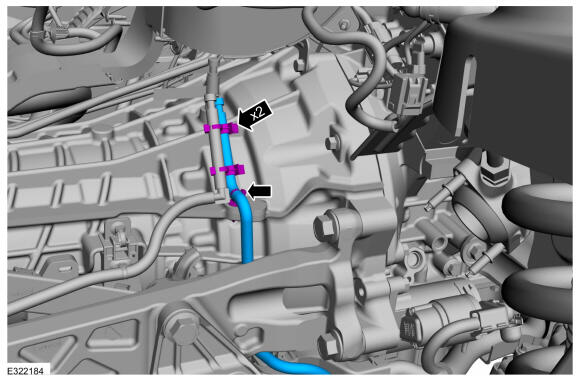

- Detach the front axle assembly breather hose retainers.
- Detach the tie strap and remove the front axle assembly breather hose.
Courtesy of FORD MOTOR COMPANY

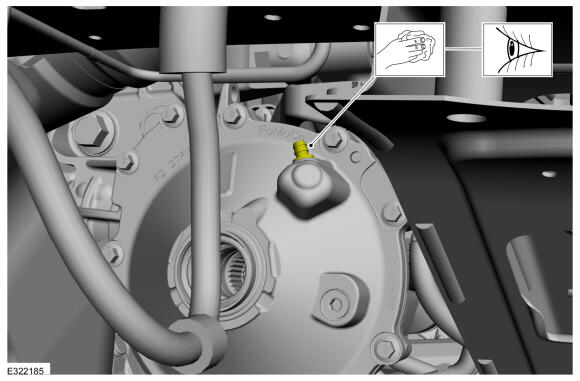

NOTE: Make sure the axle assembly vent tube and vent plug is not damaged or blocked.

Clean and inspect the front axle assembly vent tube.

Courtesy of FORD MOTOR COMPANY

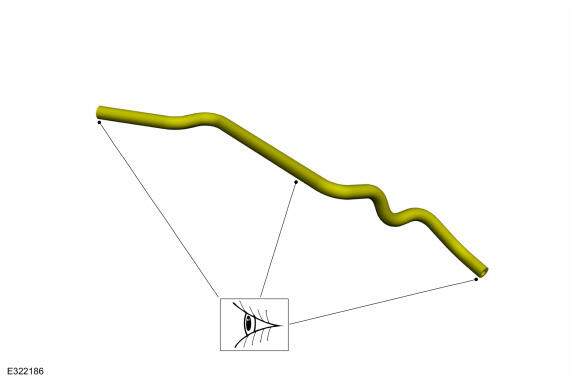

NOTE: This step is not necessary when installing a new component.

Inspect front axle assembly the vent tube for blocked or cracked. Install new vent tube and vent plug if.

Courtesy of FORD MOTOR COMPANY
