Axle Shaft Seal: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: The stub shaft seals must be replaced whenever the halfshafts are removed.

    Remove the front RH halfshaft. Refer to: Front Halfshaft RH .

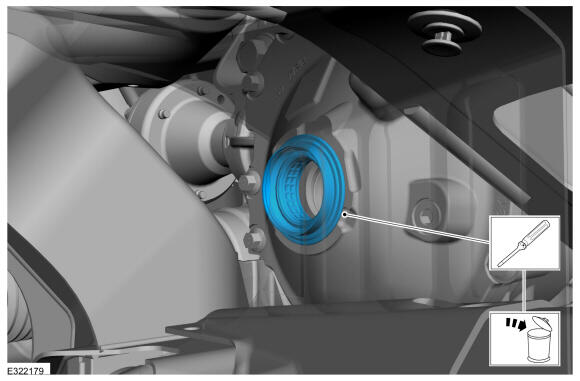

  2. Remove and discard the front RH halfshaft seal.
GFD836901Courtesy of FORD MOTOR COMPANY
