Wheel Bearings, Wheel Hub Seal and Wheel Bearing Cups: Removal
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the wheel hub. Discard the outer wheel hub bearing. Refer to: Wheel Bearings, Wheel Hub Seal and Wheel Bearing Cups
- Remove and discard the wheel hub inner seal.

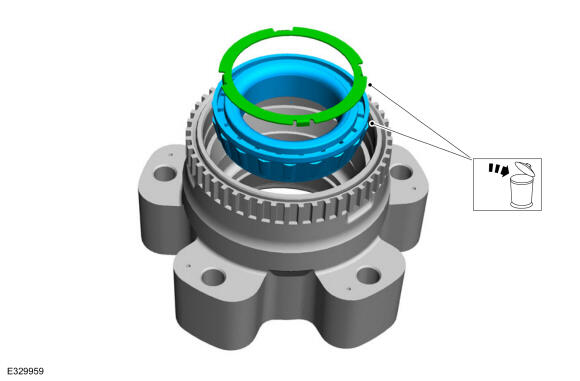

- Remove and discard the slinger and the inner wheel hub bearing.

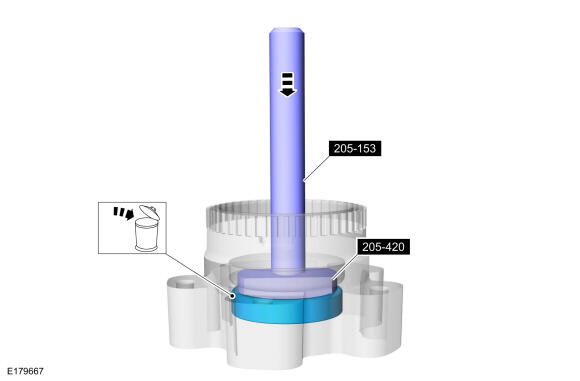

- Using the specials tools, remove and discard the outer wheel bearing cup.Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 205-420 Remover, Wheel Hub Outer Bearing Cup (10 1/2).

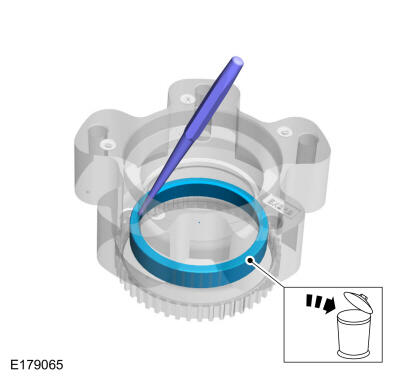

- Using the general equipments, remove and discard the inner wheel bearing cup.Use the General Equipment: PunchUse the General Equipment: Rubber Mallet
