Axle Shaft: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wheel and tire. Refer to: Wheel and Tire .

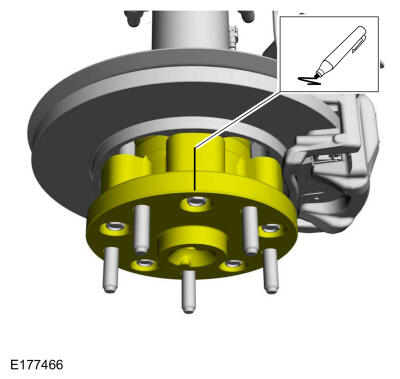

  2. Index-mark the axle shaft flange and the wheel hub to maintain alignment during installation
    GFD836845Courtesy of FORD MOTOR COMPANY

    Vehicles with single rear wheels

  3. Remove and discard the axle shaft bolts and remove the axle shaft.

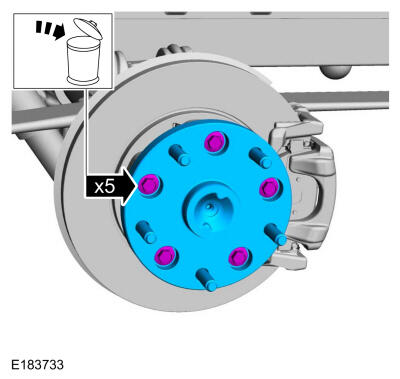

    GFD836846Courtesy of FORD MOTOR COMPANY

    Vehicles with DRW and SRW Jumbo

  4. Remove and discard the axle shaft bolts and remove the axle shaft.
    GFD836847Courtesy of FORD MOTOR COMPANY

    Vehicles with Drum In Hat Parking Brake

  5. NOTE: Be prepared to collect escaping fluid.

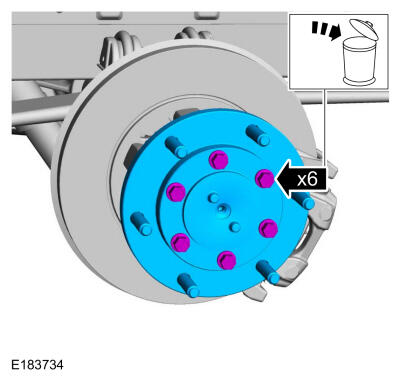

    Remove and discard the axle shaft bolts and remove the axle shaft.

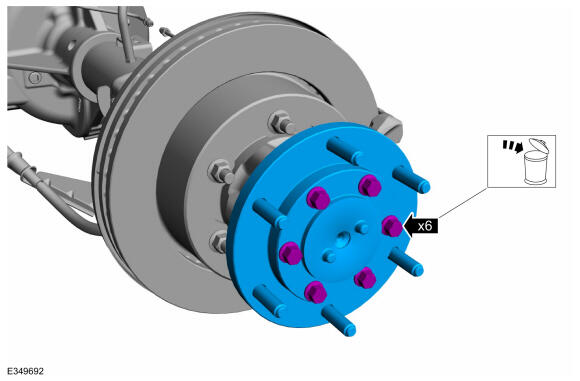

GFD836848Courtesy of FORD MOTOR COMPANY
