Valve Stem Diameter

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Check

NOTE: Refer to the appropriate Engine Service Information for the specification.

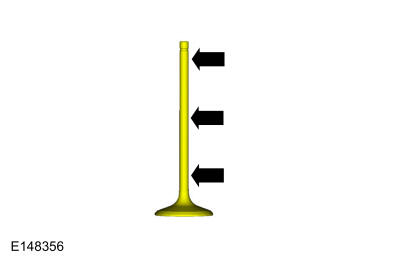

  1. Measure the diameter of each intake and exhaust valve stem at the points shown. Verify the diameter is within specification.
GFD837573Courtesy of FORD MOTOR COMPANY
