Piston Ring End Gap
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Special Tool(s) / General Equipment
| Feeler Gauge |
|---|
Check
NOTE:
Refer to the appropriate Engine Service Information for the specification.
-
NOTE: Use care when fitting piston rings to avoid possible damage to the piston ring or the cylinder bore.NOTE: Piston rings should not be transferred from one piston to another.NOTE: The cylinder bore must be within specification for taper and out-of-round.

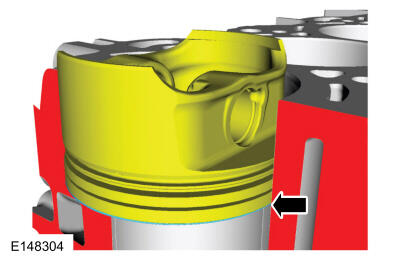

Use a piston without rings to push a piston ring in a cylinder to the bottom of ring travel.

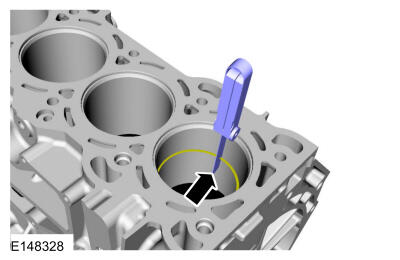

- Using the Feeler Gauge Set measure the top piston ring end gap and the second piston ring end gapUse the General Equipment: Feeler Gauge
