Oil Pressure Test 3.5L EcoBoost & 3.5L PowerBoost
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
Oil Pressure Test 3.5L EcoBoost and 3.5L PowerBoost
- With the vehicle in NEUTRAL, position it on a hoist.For additional information, refer to: Jacking and Lifting - 3.5L Duratec (202kW/275PS)/3.5L EcoBoost (235kW/320PS) - Overview (100-02 Jacking and Lifting, Description and Operation).

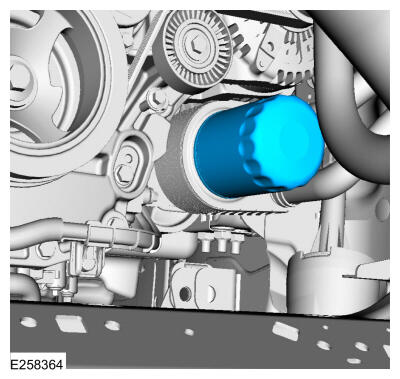

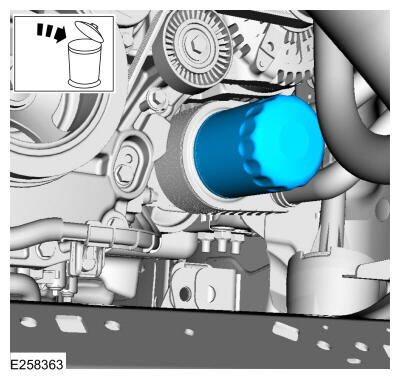

- Remove and discard the oil filter.
- Connect a GearWrench 3289 Oil Pressure Tester Kit or equivalent oil pressure gauge to the oil filter housing.
Oil Pressure Test 3.5L EcoBoost and 3.5L PowerBoost
- Remove the commercially available oil pressure gauge.
- Install a new manufacturer-specified oil filter.

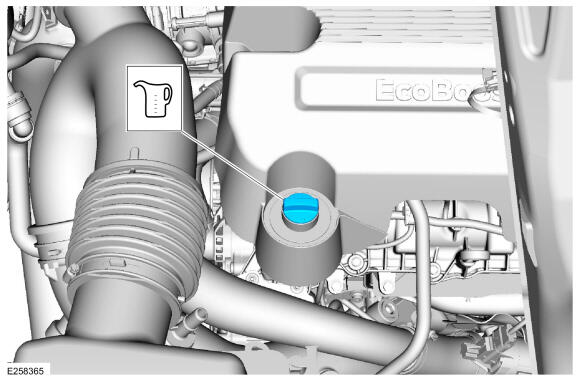

- Check and refill the oil as needed, using new manufacturer-specified oil. Refer to the Specifications in the appropriate Engine Service information.
