Crankshaft Main Bearing Journal Clearance

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Check

NOTE: Refer to the appropriate Engine service information for the specification.

NOTE: Crankshaft main bearing journals must be within specifications before checking journal clearance.

Remove the crankshaft main bearing cap and crankshaft main bearing.

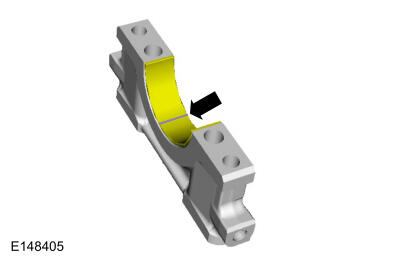

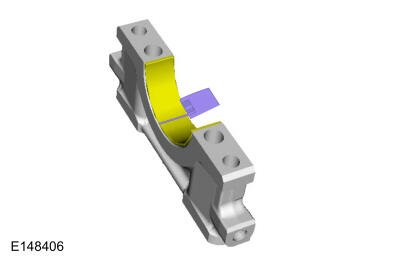

Position a piece of Plastigage across the crankshaft main bearing surface.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not turn the crankshaft while carrying out this procedure.

Install and tighten to specifications, then remove the crankshaft main bearing cap.
Measure the Plastigage to get the crankshaft main bearing clearance. The Plastigage should be smooth and flat. A changing width indicates a tapered or damaged crankshaft or crankshaft bearing.

Courtesy of FORD MOTOR COMPANY
