Bearing Inspection

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Inspection

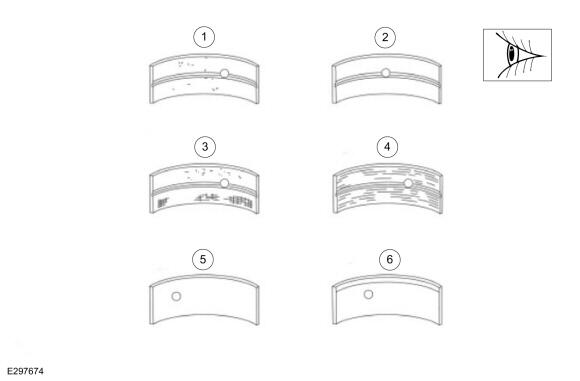

    1. Cratering - fatigue failure
    2. Spot glazing - incorrect seating
    3. Scratching - dirty engine oil
    4. Base exposed - poor lubrication
    5. Both edges worn - journal damaged
    6. One edge worn - journal tapered or bearing not seated
GFD837525Courtesy of FORD MOTOR COMPANY
