Drive Pinion: Removal
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the differential carrier. Refer to: Differential Carrier
- Remove the drive pinion seal. Refer to: Drive Pinion Seal

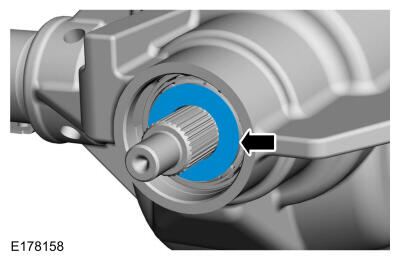

- Remove the drive pinion outer shim.

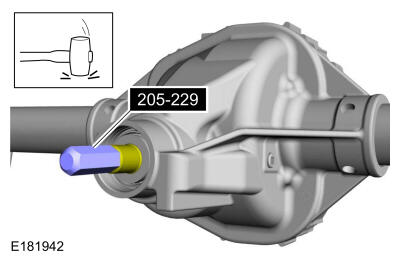

- Using the special tool and a soft face mallet, tap drive pinion free of the of the drive pinion outer bearing. Use Special Service Tool: 205-229 (T85T-4209-AH) Protector, Drive Pinion Thread. Use the General Equipment: Rubber Mallet

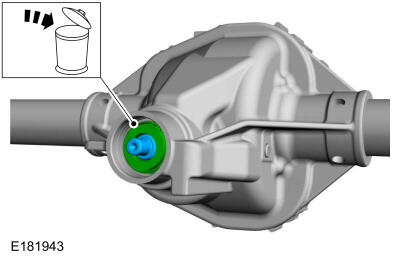

- Remove the drive pinion and remove and discard the drive pinion outer bearing.

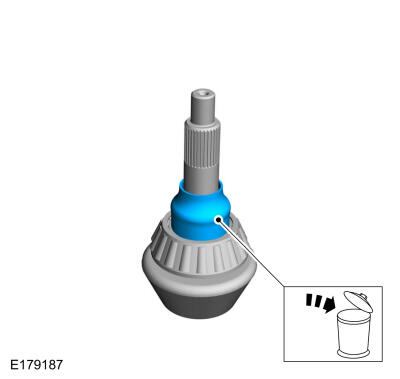

- Remove and discard the drive pinion collapsible spacer.

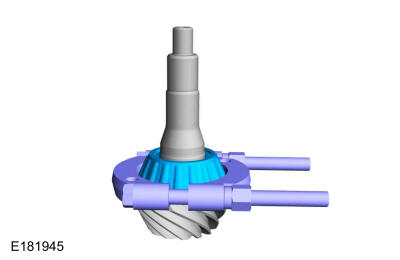

- Using the bearing puller and a hydraulic press, remove and discard the inner drive pinion bearing. Use Special Service Tool: 205-D064 (D84L-1123-A) Puller, Bearing. Use the General Equipment: Hydraulic Press

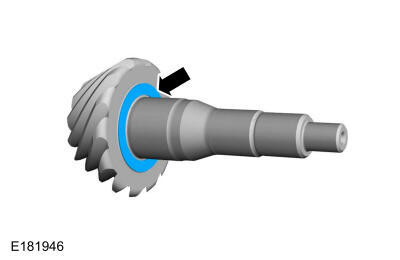

- Remove the inner drive pinion bearing shim.

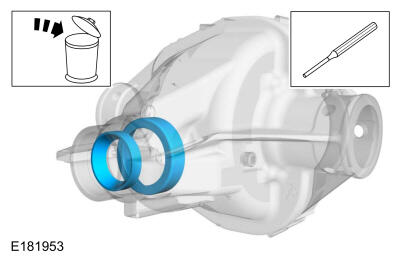

- Using the general equipment, remove and discard the drive pinion bearing cups. Use the General Equipment: Punch. Use the General Equipment: Copper Hammer
