Drive Pinion Flange: Removal
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: If the axle shafts are not removed, the rear brake pads must be removed for accurate pinion nut drag torque readings.
Remove the rear brake pads. Refer to the appropriate Rear Disc Brake service information. .
-
- Mark the driveshaft to the rear axle pinion flange.

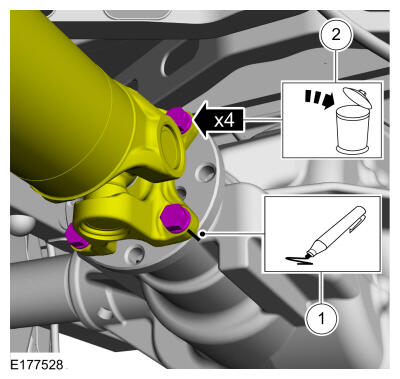

- Remove and discard the driveshaft to pinion flange bolts. Position the driveshaft aside.
-
NOTE: Rotational torque of the drive pinion flange must be measured and recorded using a Nm (lb-in) torque wrench for correct pinion bearing preload when reassembled. This will be the torque-to-turn measurement.

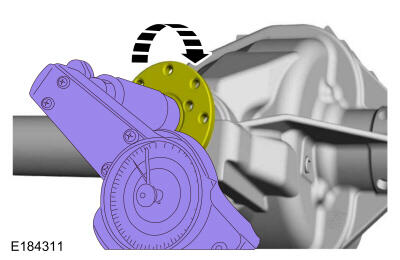

Using a suitable torque wrench, measure and record the rotational torque of the drive pinion.

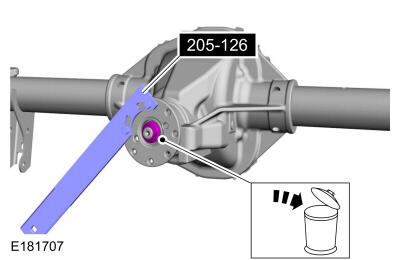

- Using the special tool to hold the pinion flange, remove and discard the pinion nut. Use Special Service Tool: 205-126 (T78P-4851-A) Holding Fixture, Drive Pinion Flange.

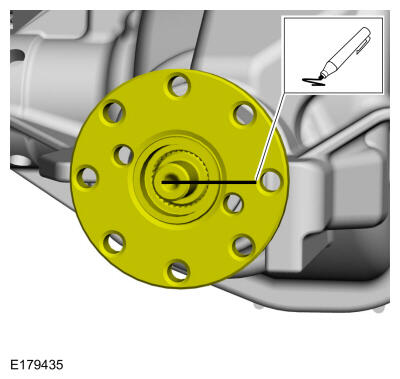

- Mark the drive pinion flange and the drive pinion stem for reassembly.

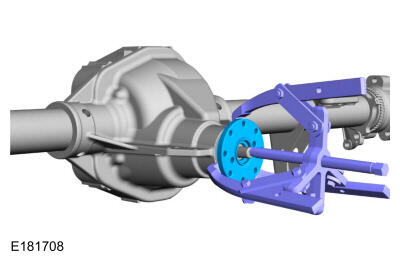

- Using the general equipment, remove the pinion flange. Use Special Service Tool: 205-D072 (D97L-4221-A) 2 Jaw Puller.
