Differential Housing Cover: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: JACKING AND LIFTING .

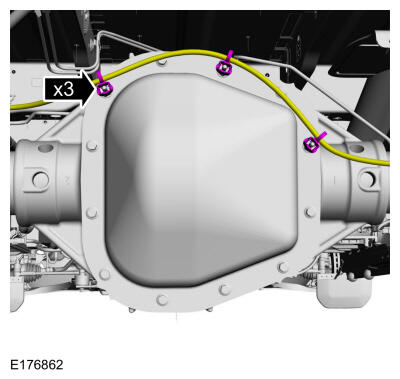

  2. Detach the wheel speed sensor wire harness retainers. Position the wheel speed sensor wiring harness aside.
    GFD836768Courtesy of FORD MOTOR COMPANY

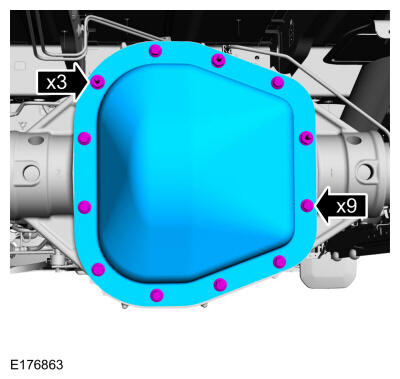

  3. NOTE: Be prepared to collect escaping fluid.

    Remove the differential cover stud bolts and the differential cover bolts. Remove the differential cover.

    GFD836769Courtesy of FORD MOTOR COMPANY

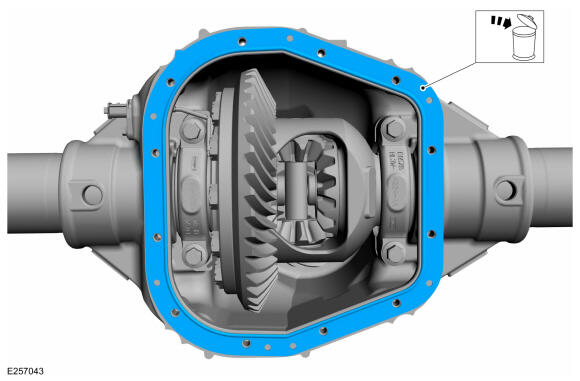

  4. Remove and discard the differential housing gasket.
    GFD836770Courtesy of FORD MOTOR COMPANY

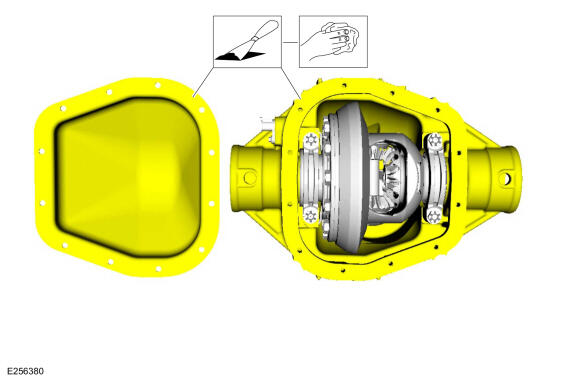

  5. NOTE: Remove the gasket and make sure the surfaces are free of oil.

    Clean the gasket mating surface of the axle and the differential housing cover. Refer to: RTV Sealing Surface Cleaning and Preparation

GFD836771Courtesy of FORD MOTOR COMPANY
