Differential Carrier: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the axle shafts. Refer to: AXLE SHAFT .
  2. Remove the differential housing cover. Refer to: Differential Housing Cover  .
  3. Remove and discard the rear stabilizer bar bracket bolts and position the rear stabilizer bar aside.
    GFD836755Courtesy of FORD MOTOR COMPANY
  4. NOTE: The differential bearing caps and differential bearing cap bolts need to be installed in the same location as removed.

    Remove the differential bearing cap bolts and differential bearing caps.

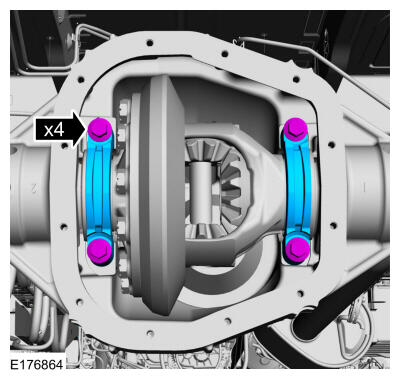

    GFD836741Courtesy of FORD MOTOR COMPANY
  5. Remove the differential carrier, differential carrier bearing cups and the differential shims.

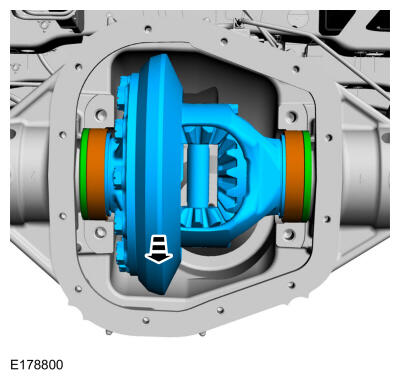

GFD836742Courtesy of FORD MOTOR COMPANY
