Axle Assembly: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Right hand (RH) shown, left hand (LH) similar.

Remove the rear wheels and tires. Refer to: Wheel and Tire

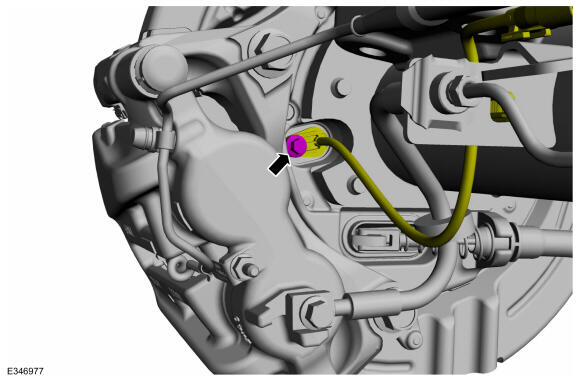

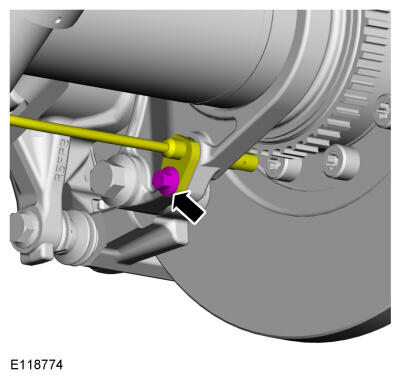

Remove the wheel speed sensor bolt and position the wheel speed sensor aside.
Torque : 11 Nm

Courtesy of FORD MOTOR COMPANY

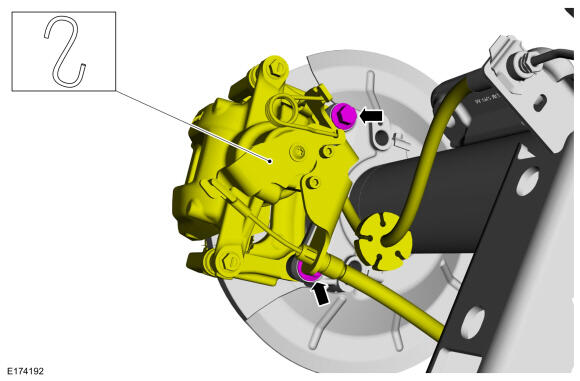

Remove and discard the anchor plate bolts, position and support the caliper aside.
Torque : 115 Nm

Courtesy of FORD MOTOR COMPANY

Vehicles with Drum In Hat Parking Brake
Remove the wheel speed sensor bolt and position the wheel speed sensor aside.
Torque : 11 Nm

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that new bolts are installed.

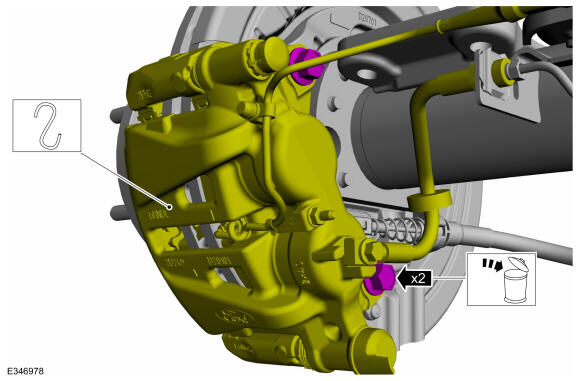

Remove and discard the anchor plate bolts, position and support the caliper aside.

Torque : 175 Nm

Courtesy of FORD MOTOR COMPANY

All vehicles

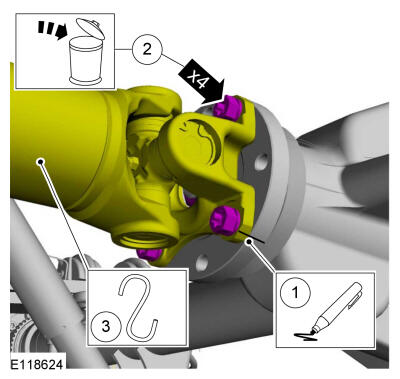

1. Index-mark the rear driveshaft flange to the pinion flange to maintain alignment during installation.
2. NOTE: Make sure that new bolts are installed.

  Remove and discard the rear driveshaft to pinion flange bolts.

  Torque : 103 Nm
3. Position and support the rear driveshaft aside.
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that new bolts are installed.

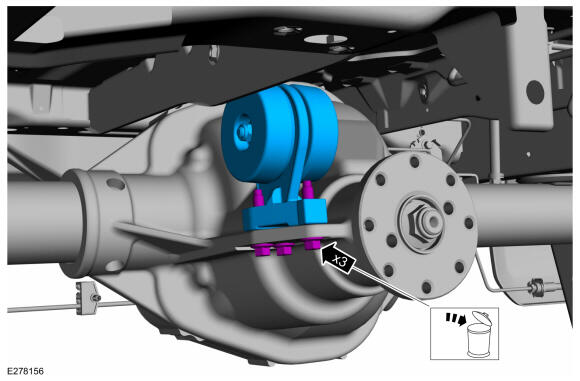

If equipped. Remove and discard the pinion nose damper bolts and remove the pinion nose damper.

Torque : 62 Nm

Courtesy of FORD MOTOR COMPANY

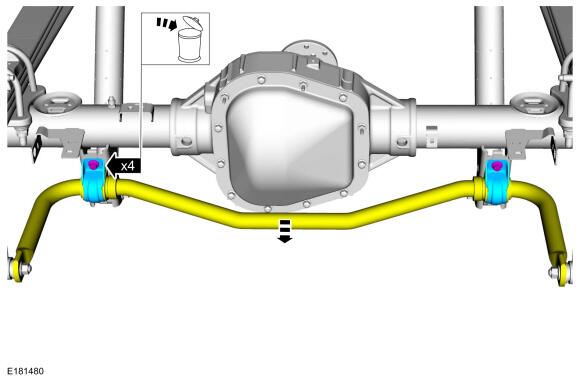

Remove and discard the rear stabilizer bar bracket bolts and position the rear stabilizer bar aside.
Torque : 70 Nm

Courtesy of FORD MOTOR COMPANY

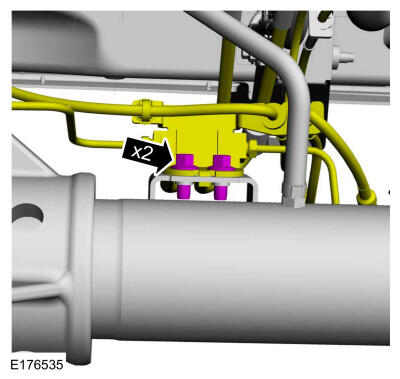

Remove the brake line bracket bolts.
Torque : 25 Nm

Courtesy of FORD MOTOR COMPANY

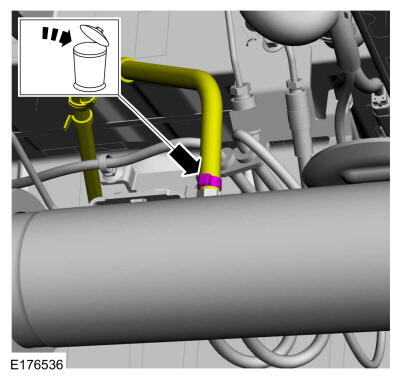

Remove and discard the vent hose retainer and position aside the rear axle housing vent hose.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure the axle assembly vent tube and elbow is not damaged or blocked.

NOTE: This step is not necessary when installing a new component.

NOTE: Apply loctite to the vent threads while installing vent into the axle assembly.

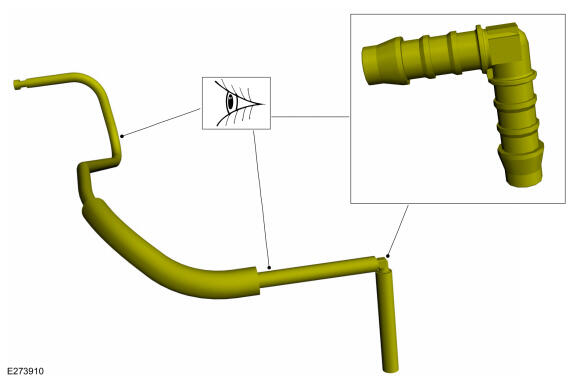

Clean and inspect the vent tube and elbow. Install new vent tube and elbow if blocked or cracked.

Material : Thread Locking Sealant

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that all openings are sealed or capped.
1. Disconnect the brake line tube nut.
  Torque : 18 Nm
2. Remove the brake line tube retainer.
3. Position the brake line and brake hose aside.

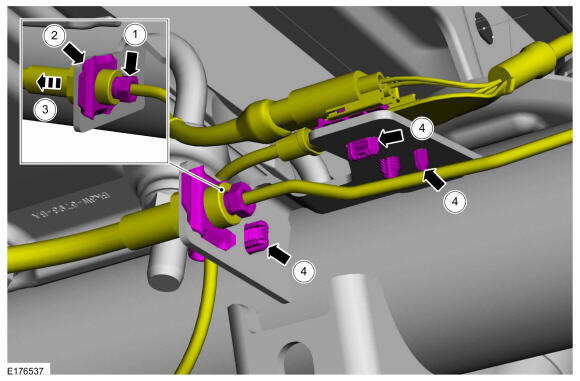

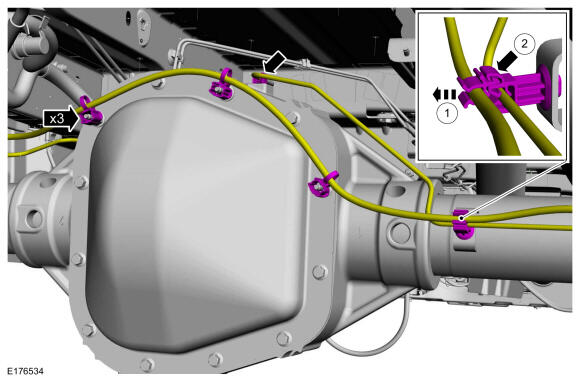

4. Disconnect the ABS harness clips. Position the ABS harness aside.
Courtesy of FORD MOTOR COMPANY
- Separate the ABS harness clips from the differential housing cover stud bolts.
- Remove the brake line from the top retaining clip on the differential housing.
- Separate the ABS harness and brake line from the differential housing axle tube. Position the ABS harness and brake line aside.
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that all openings are sealed or capped.
1. Disconnect the brake line tube nut.
  Torque : 18 Nm
2. Remove the brake line tube retainer.
3. Position the brake line and brake hose aside.

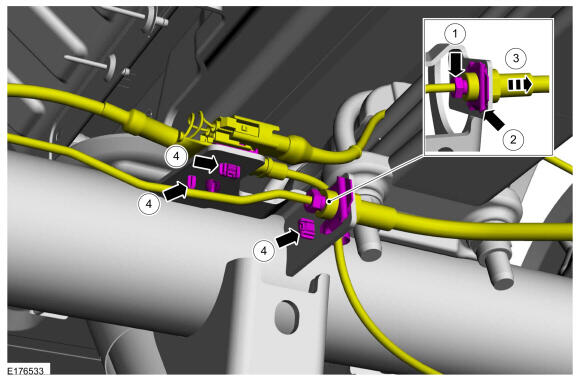

4. Disconnect the ABS harness clips. Position the ABS harness aside.
Courtesy of FORD MOTOR COMPANY

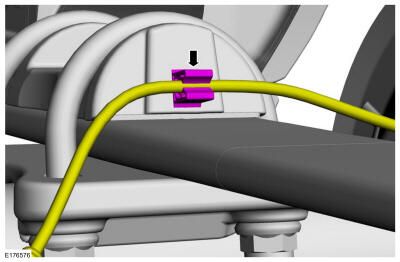

On both sides. Separate the ABS wire from the retaining clip.

Courtesy of FORD MOTOR COMPANY

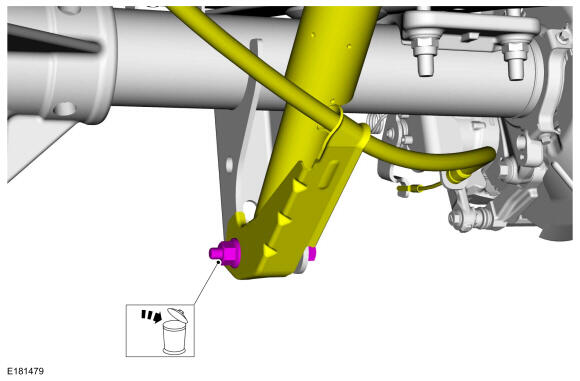

On both sides. Remove and discard the rear shock absorber lower bolt and nut and position the parking brake cable bracket and the rear shock absorber aside.
Torque : 110 Nm

Courtesy of FORD MOTOR COMPANY

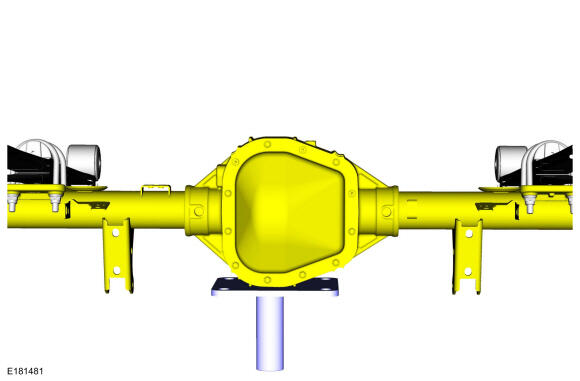

Using the transmission jack, support the axle assembly. Use the General Equipment: Transmission Jack

Courtesy of FORD MOTOR COMPANY
NOTE: This step requires the aid of another technician.

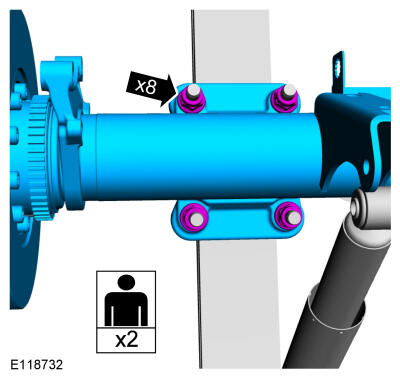

On both sides. Remove the U-bolts and nuts.

Courtesy of FORD MOTOR COMPANY
