Axle Assembly: Installation

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse the removal procedure.
NOTE: Only tighten the nuts finger tight at this stage.

NOTE: This step requires the aid of another technician.

On both sides. Install the U-bolts and nuts.

Courtesy of FORD MOTOR COMPANY

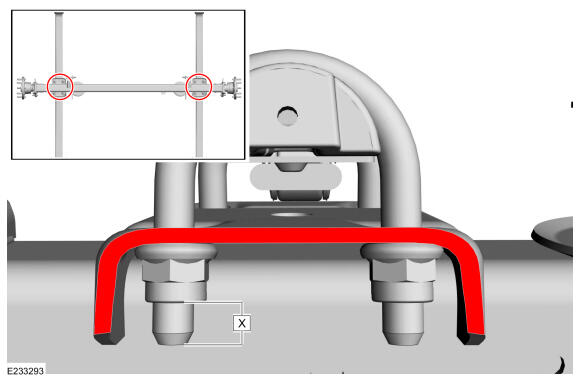

Equally tighten the U-bolts to ensure that the length x doesn't differ more than 3mm.
Torque : Stage 1: 25 Nm Stage 2: 50 Nm Stage 3: 75 Nm Stage 4: 100 Nm Stage 5: 125 Nm Stage 6: 150 Nm Stage 7: 175 Nm

Courtesy of FORD MOTOR COMPANY
Bleed the brake system. Refer to: BRAKE SYSTEM PRESSURE BLEEDING .
