Ring Gear Backlash Adjustment
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Special Tool(s) / General Equipment
| 205-220Installer, Differential Shim | |
|---|---|
| Dial Indicator |
Adjustment

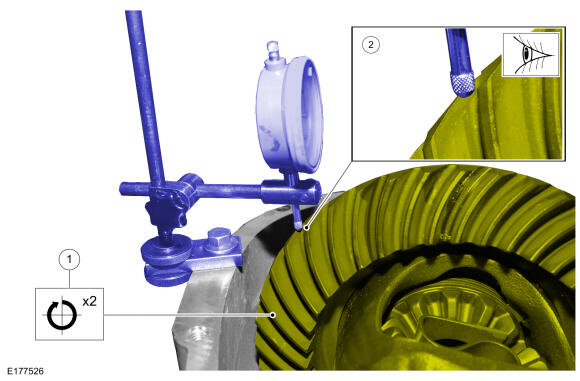

- Install the dial indicator gauge with holding fixture, with the dial indicator at a 90 degree angle from the ring gear tooth. Use the General Equipment: Dial Indicator

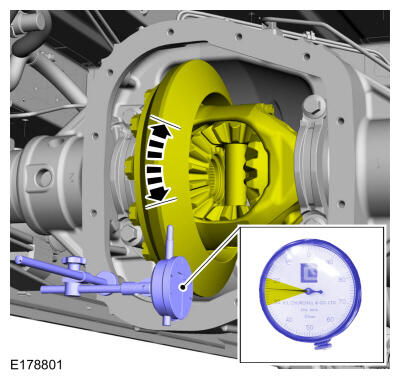

- Using the dial indicator check the ring gear backlash. Rotate the ring gear and carrier back and forth through the free play only. Refer to: Specifications
Use the General Equipment: Dial Indicator
-
- To correct for high or low backlash, increase the thickness of one differential bearing shim and decrease the thickness of the other differential bearing shim by the same amount.
- If a zero backlash condition had occurred, add 0.50 mm (0.020 in) to the RH side shim and subtract 0.50 mm (0.020 in) from the LH side shim to allow a backlash indication. Recheck backlash.
- Using the backlash chart, determine the thickness of differential shim needed: Refer to: Specifications
-
NOTE: The differential bearing caps and differential bearing cap bolts need to be installed in the same location as removed.
With the dial indicator removed, remove the differential bearing cap bolts and differential bearing caps.
- Remove the differential carrier, differential carrier bearing cups and the differential shims.
-
NOTE: Have the selected shims available at this time. It will be required to hold the differential carrier and the differential carrier bearing cups in until shims are installed.
Install the differential carrier and the differential carrier bearing cups.
-
- Install the RH selected ring gear back lash shim.
- Position the differential to the RH side of the differential housing.
-
NOTE: The differential bearing cap bolts should only be finger tight at this time.
Install the RH differential bearing cap and the differential bearing cap bolts.
- Using the special tool and a soft face brass mallet, install the LH selected ring gear back lash shim. Use Special Service Tool: 205-220 Installer, Differential Shim.
-
NOTE: The differential bearing cap bolts should only be finger tight at this time.
Install the LH differential bearing cap and the differential bearing cap bolts.
- Tighten the differential bearing cap bolts.
Torque : 112 Nm

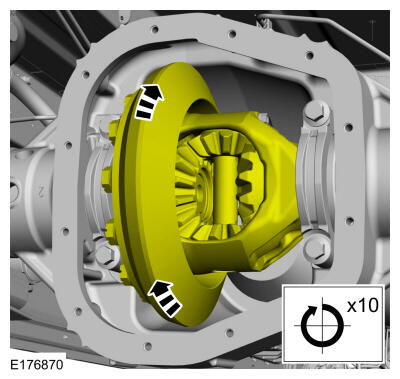

- Rotate the differential several times, to assure the differential assembly rotates freely.
- Using the dial indicator gauge with holding fixture, do a final check of the ring gear backlash. Use the General Equipment: Dial Indicator
